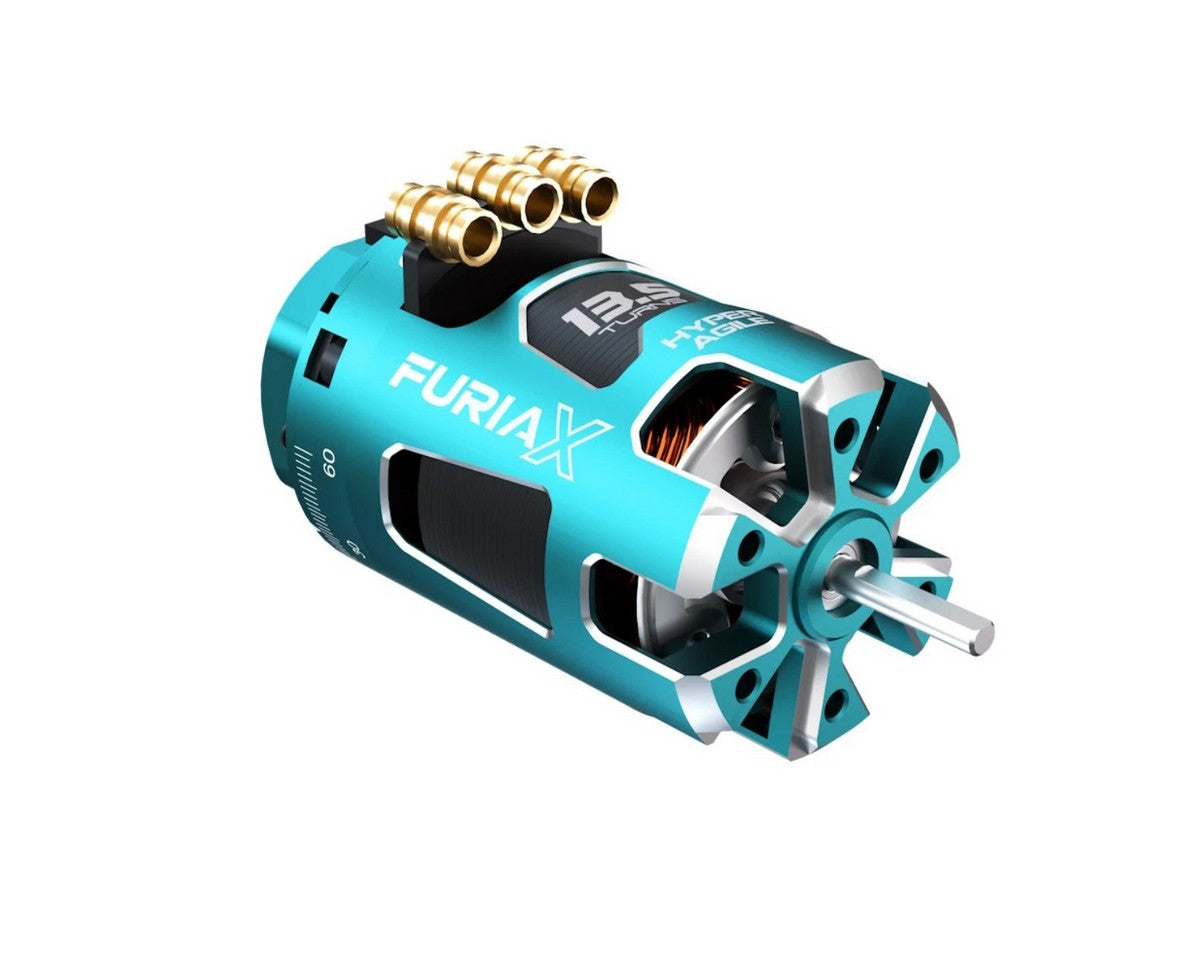

SkyRC FuriaX Hyper Agile Sensored Brushless Motor
Expect throttle precision, instant low-RPM control, and thermal stability with the SkyRC FuriaX Hyper Agile Motor. Engineered specifically to simplify your RC drift build, it eliminates the need for soldering—the 3.5mm gold-plated terminal posts allow plug and play ESC wiring. The dual-orientation terminals let you plug wires in from both sides for clean, strain-free cable management.
This motor features an internal active cooling fan for heat dissipation without requiring extra fan cables. Built with a fully modular, rebuildable design, it can be completely disassembled for cleaning and bearing replacement using standard pit tools. The Hyper Agile is one of the best-value advanced-level motors in the RC drift world, and it performs exceptionally well on 1/10 RC touring cars as well!

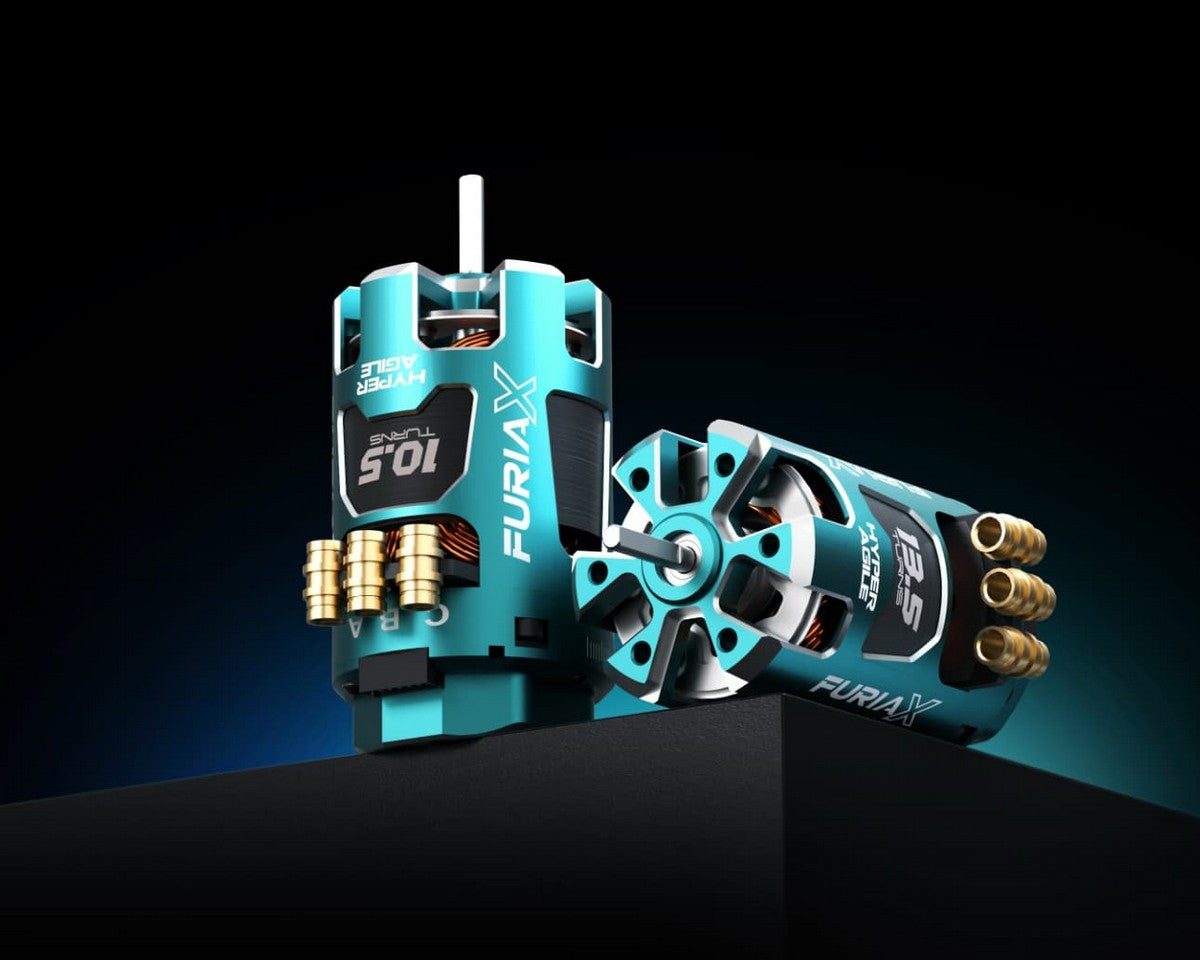

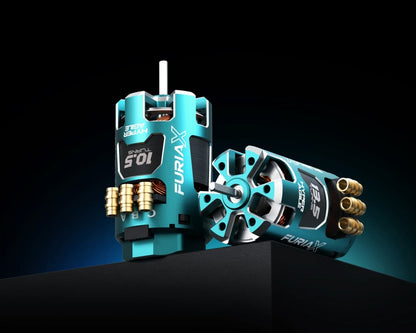

Available in 10.5T (3880KV) for high-revving wheel speed or 13.5T (3050KV) for linear, technical torque control. Its 6-pin sensored architecture ensures seamless throttle response and notch-free low-speed modulation. Compatible with SkyRC FuriaX 60A ESC. Most sensored ESCs and entry-level ESCs on the market will work as well.
Key Features
- 6-Pin Sensored Precision: Delivers instant rotor position tracking for smooth, notch-free low-RPM control and linear throttle modulation across every slide angle.

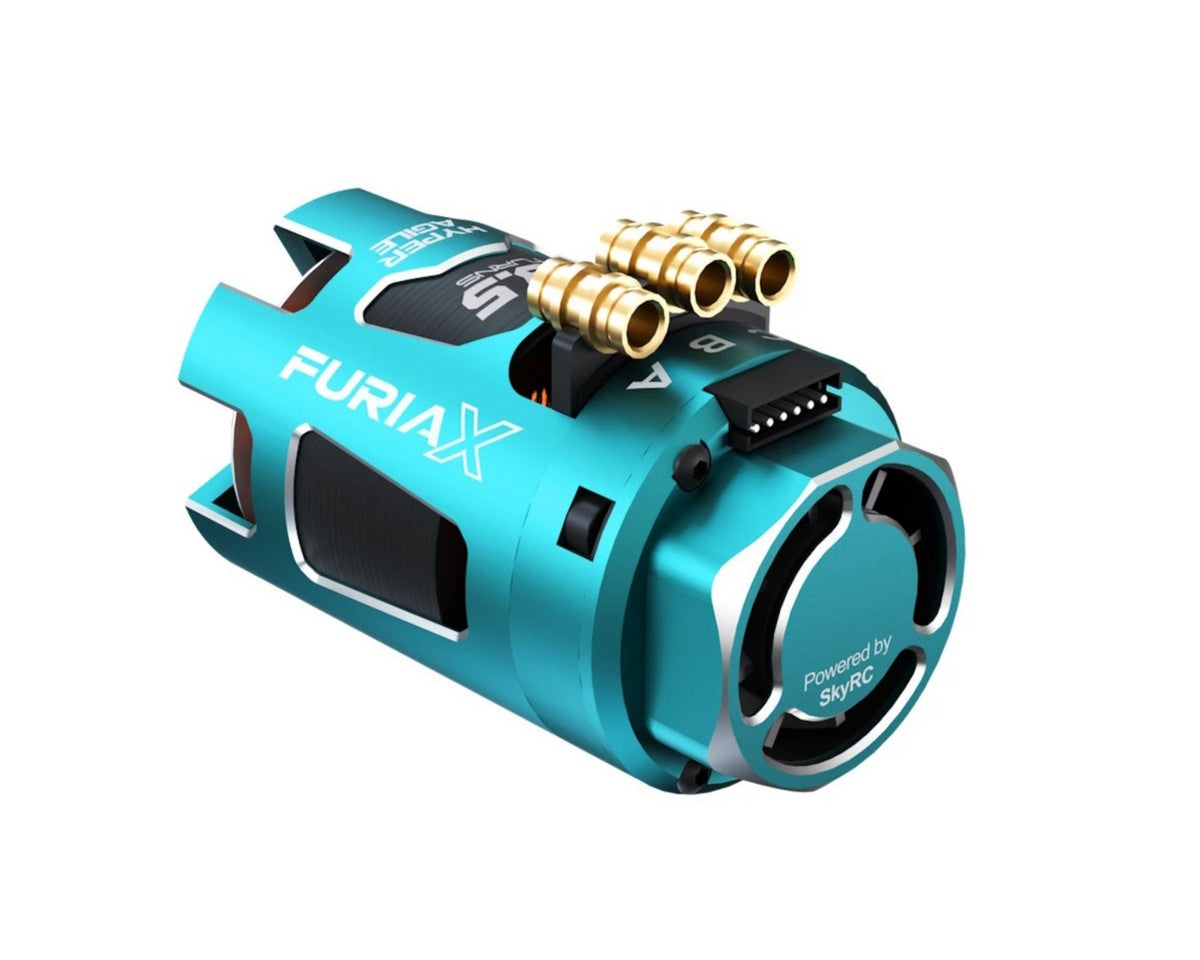

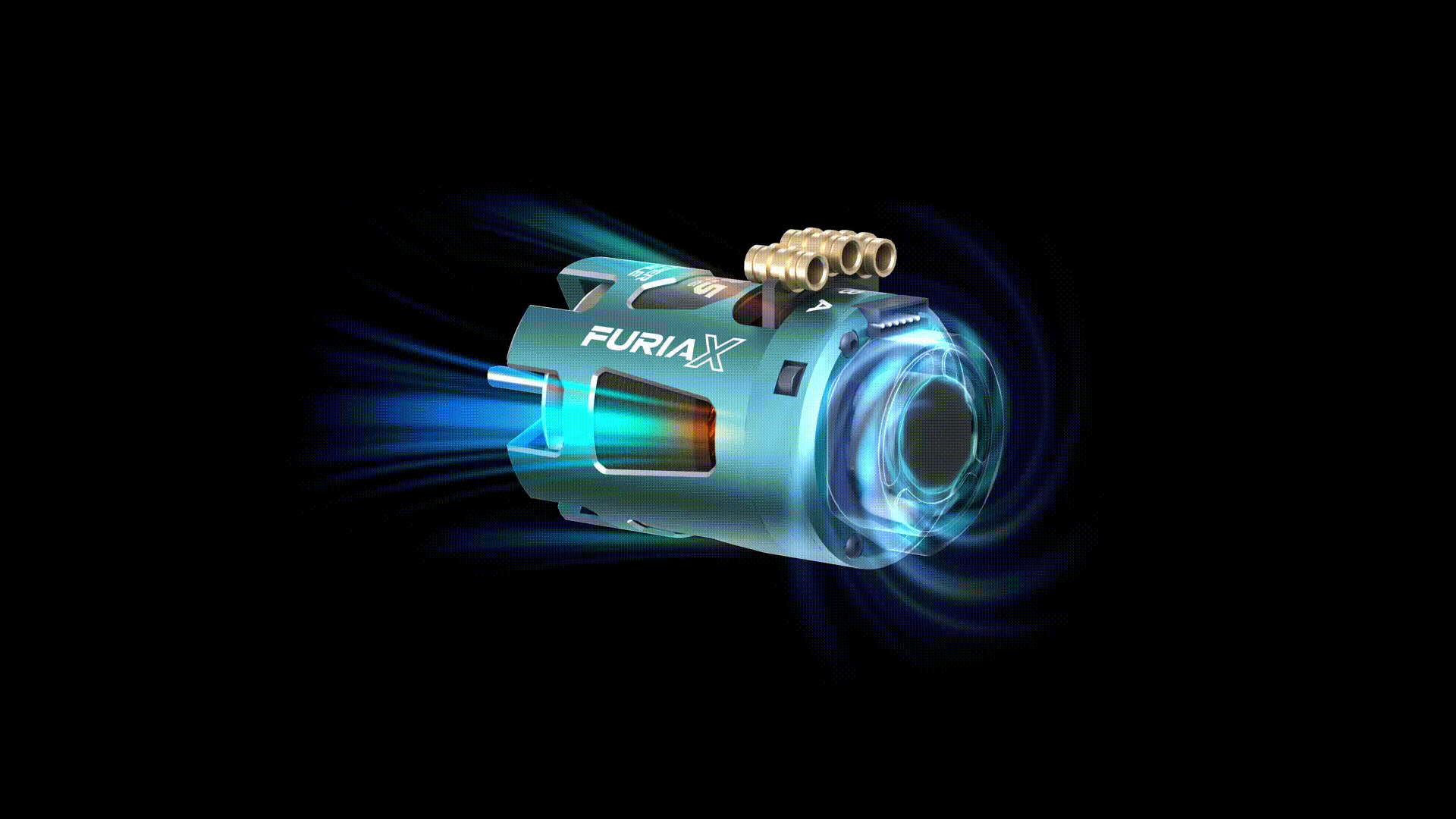

- Active Built-In Air Cooling: Houses a bottom-mounted active cooling fan operating from 3.5V to 9V (spinning up to 24,000 RPM @ 8.4V) to maintain stable thermal output during extended drift sessions.

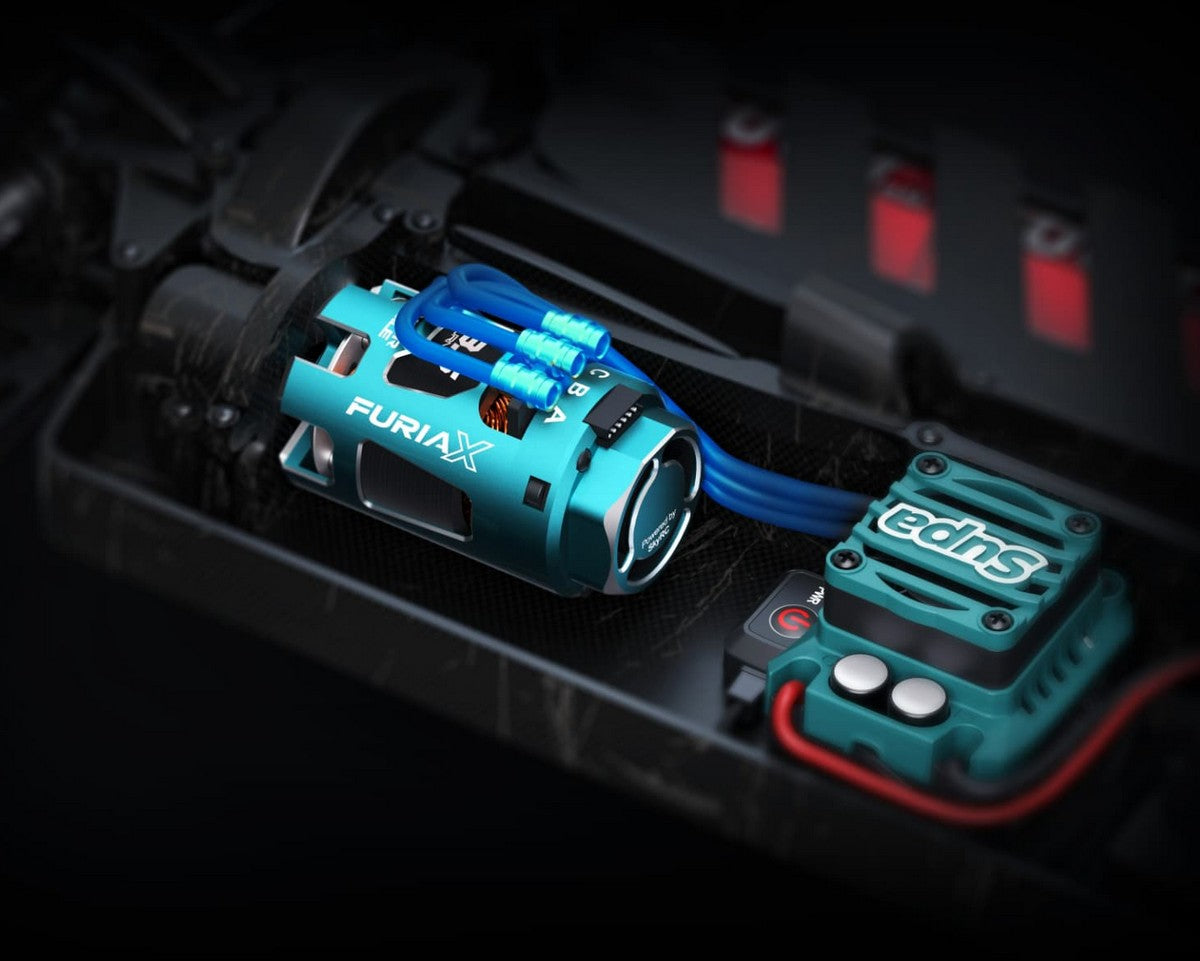

- Zero-Solder Dual-Orientation Terminals: Standard 3.5mm gold-plated terminal posts let you plug wires in from multiple directions, keeping chassis wiring clean and strain-free.

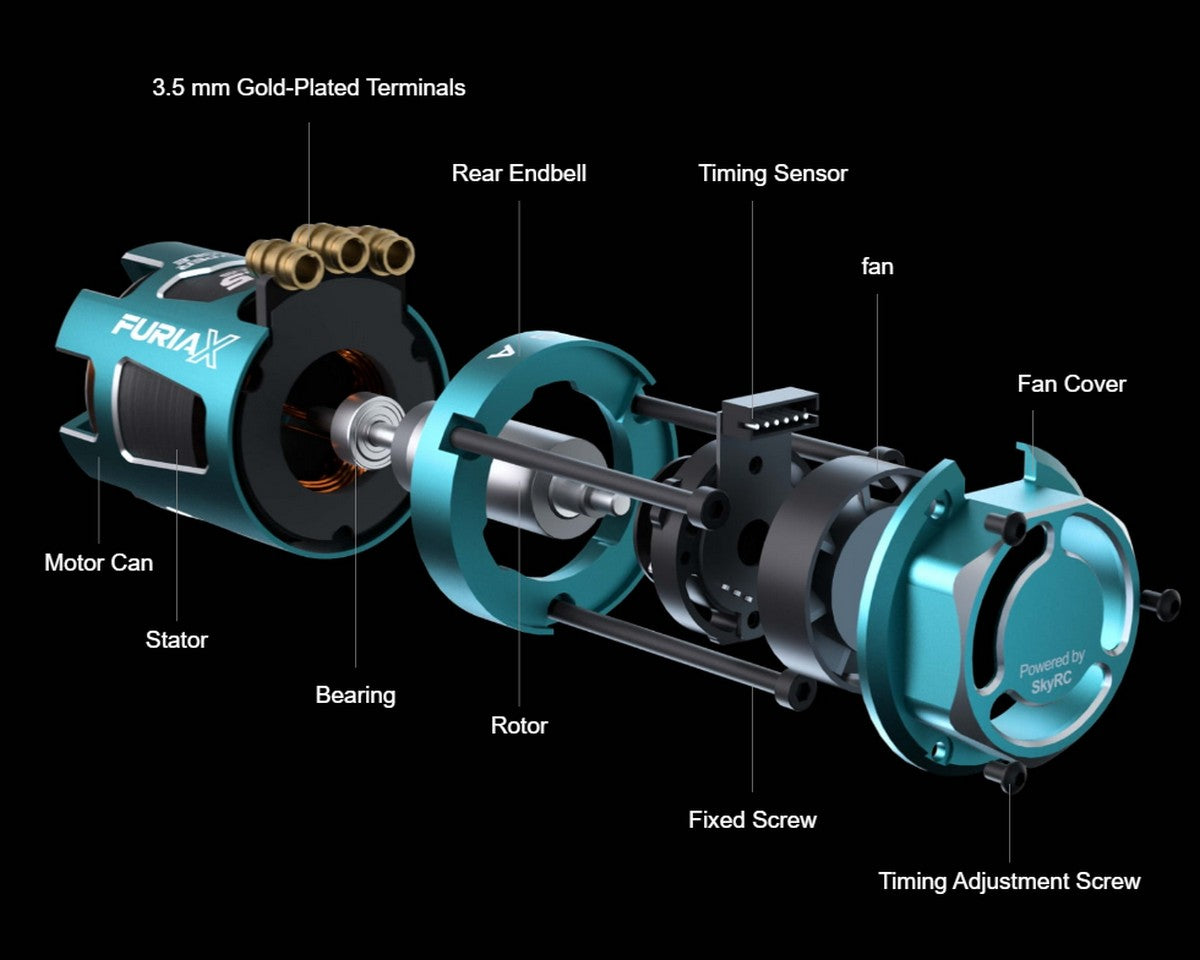

- Fully Modular & Rebuildable: Engineered with a modular structure that allows quick disassembly of the CNC aluminum housing, stator, windings, and bearings for routine maintenance.
- Integrated Electronic Protections: Features built-in reverse-polarity and motor stall protection to keep your electronics safe during mechanical jams or setup mistakes.

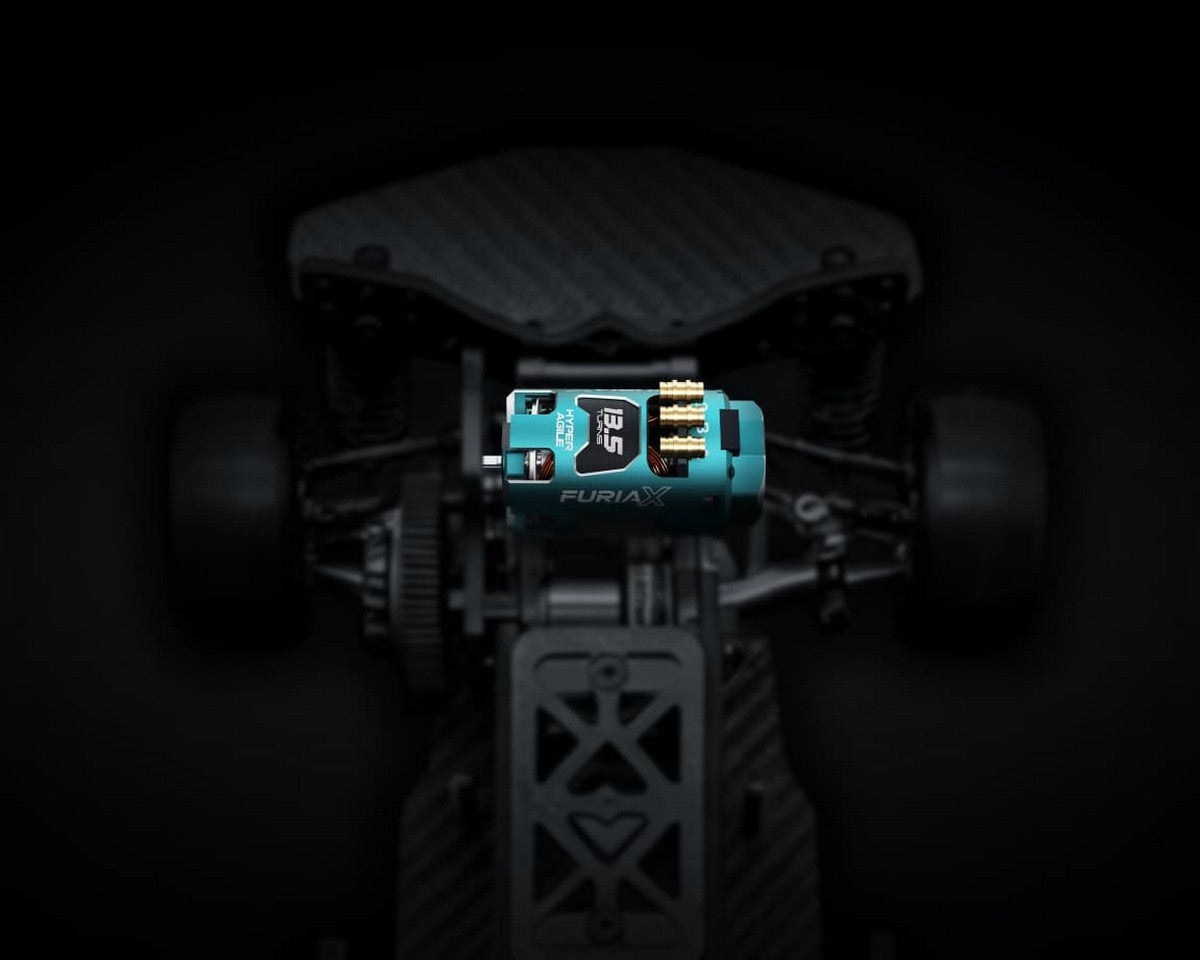

- Universal 1/10 Chassis Fitment: Uses standard M3 mounting screws on a 25.2mm pitch with a standard 3.175mm motor shaft, fitting straight into most 1/10 scale drift and touring chassis.
Specifications
General Specifications
- Sensor Interface: 6-Pin Sensored
- Terminal Type: 3.5mm Dual-Orientation Gold-Plated Posts (Solderless)
- Shaft Diameter: 3.175 mm
- Mounting Pattern: 25.2 mm (M3 Screws)
- Active Cooling Fan Range: 3.5V – 9.0V
- Cooling Fan Speed: 19,000–21,000 RPM @ 6.0V | 22,000–24,000 RPM @ 8.4V
- Operating Temperature: -10°C to +80°C
Variant Specifications
| Specification | 10.5T Variant | 13.5T Variant |
|---|---|---|
| KV Rating | 3880 KV | 3050 KV |
| Max Power Output | 250 W | 190 W |
| Dimensions | 35.8 mm × 61.3 mm | 35.8 mm × 54.4 mm |
| Weight | 173 g ± 5 g | 167 g ± 5 g |
| Rotor Size | 12.0 mm × 5.0 mm × 24.1 mm | 12.0 mm × 5.0 mm × 24.1 mm |
| Battery Voltage Range | 1–3S LiPo | 1–3S LiPo |
What's in the Box
- 1 x SkyRC FuriaX Hyper Agile Sensored Brushless Motor (10.5T or 13.5T Version)
- 1 x 6-Pin High-Flex Sensor Cable
- 1 x 1-to-2 (Y-Splitter) Fan Power Extension Cable
