Key Features & Engineering

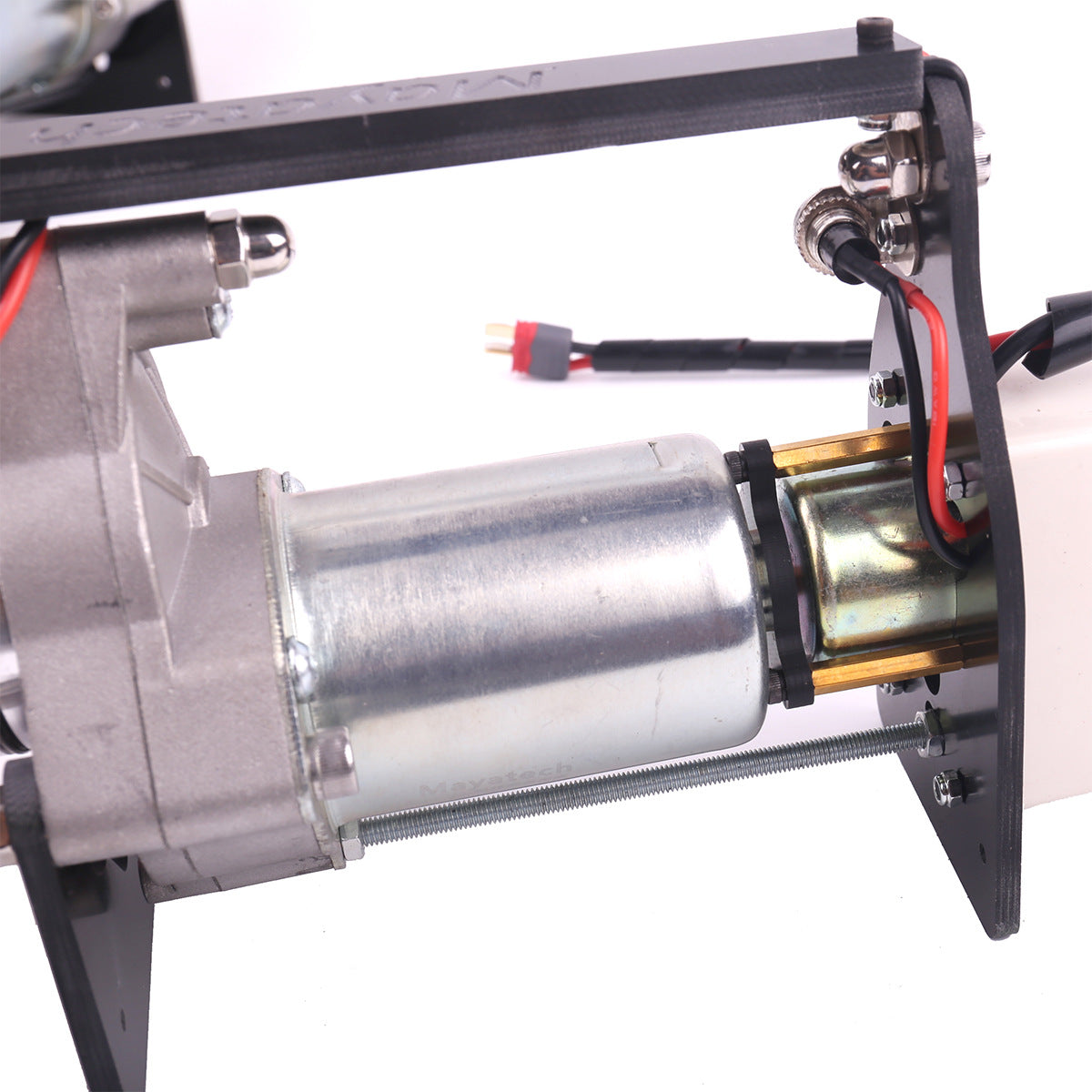

110cc Motorcycle Starter & 6:1 Gear Reduction
Powered by a high-torque 110cc 4-stroke motorcycle starter motor paired with an integrated 6:1 planetary gear reduction. Delivers massive initial cranking torque to turn over stubborn, high-compression engines without stalling or thermal overload.

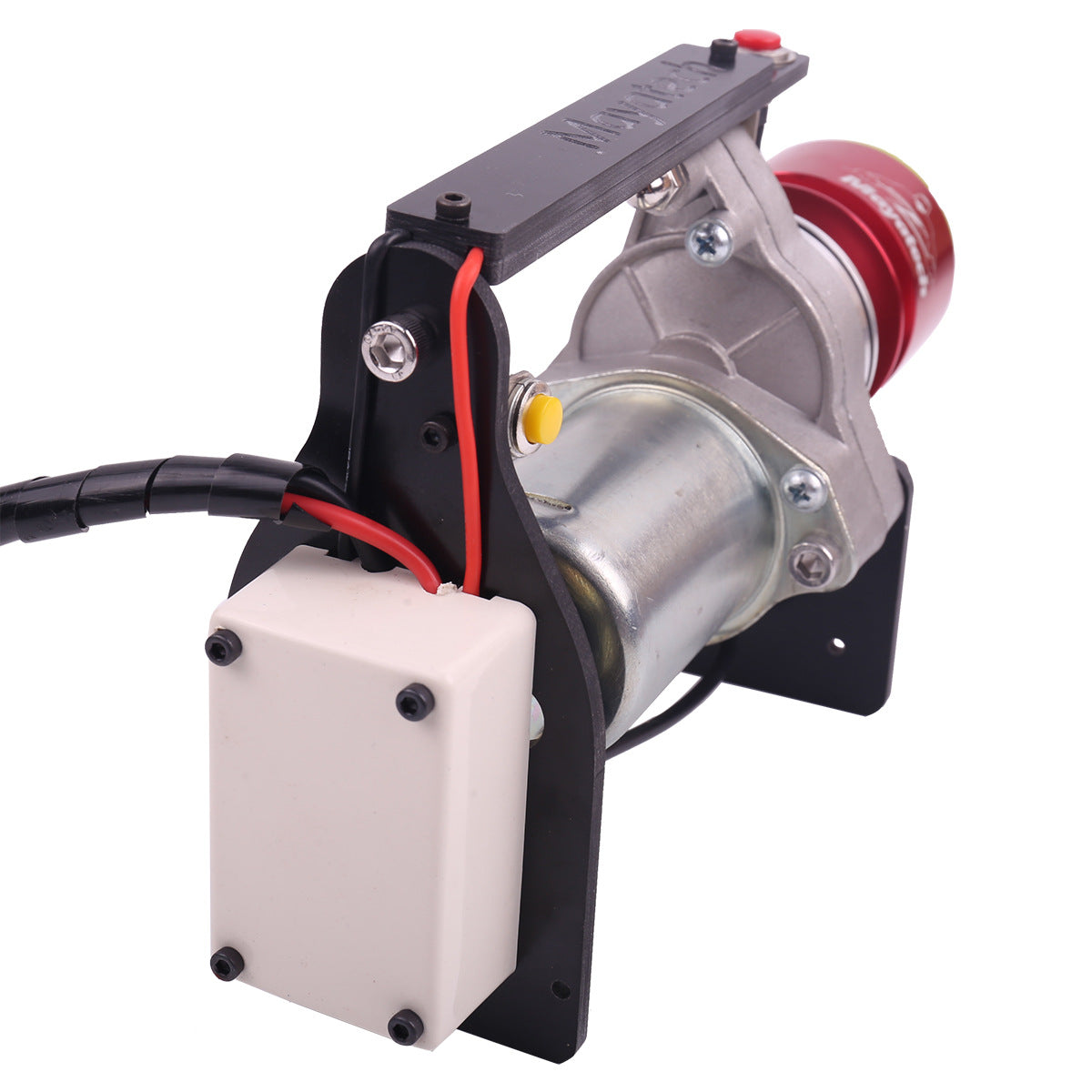

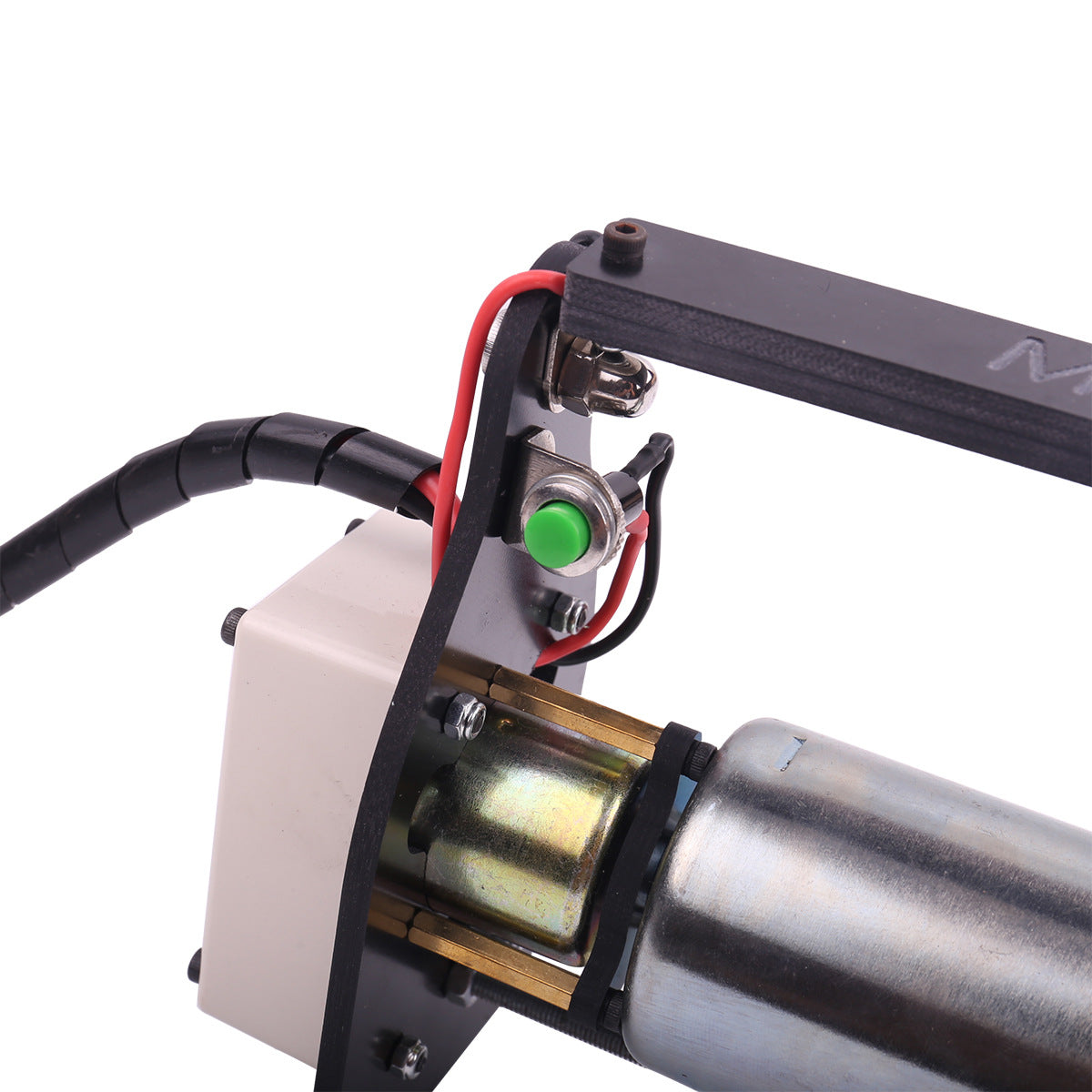

Heavy-Duty Contactor Relay Switching
Eliminates high-resistance direct trigger switches that cause voltage loss and heat build-up. An integrated automotive-grade relay routes full current straight to the motor, drastically lowering internal resistance and preventing switch burnout.
4.0mm Non-Conductive FR4 Fiberglass Plates
Constructed with ultra-thick 4.0mm FR4 fiberglass structural side plates combined with CNC-machined anodized alloy supports. Provides complete electrical isolation, exceptional rigidity, and field durability while keeping overall weight down to 1425g.

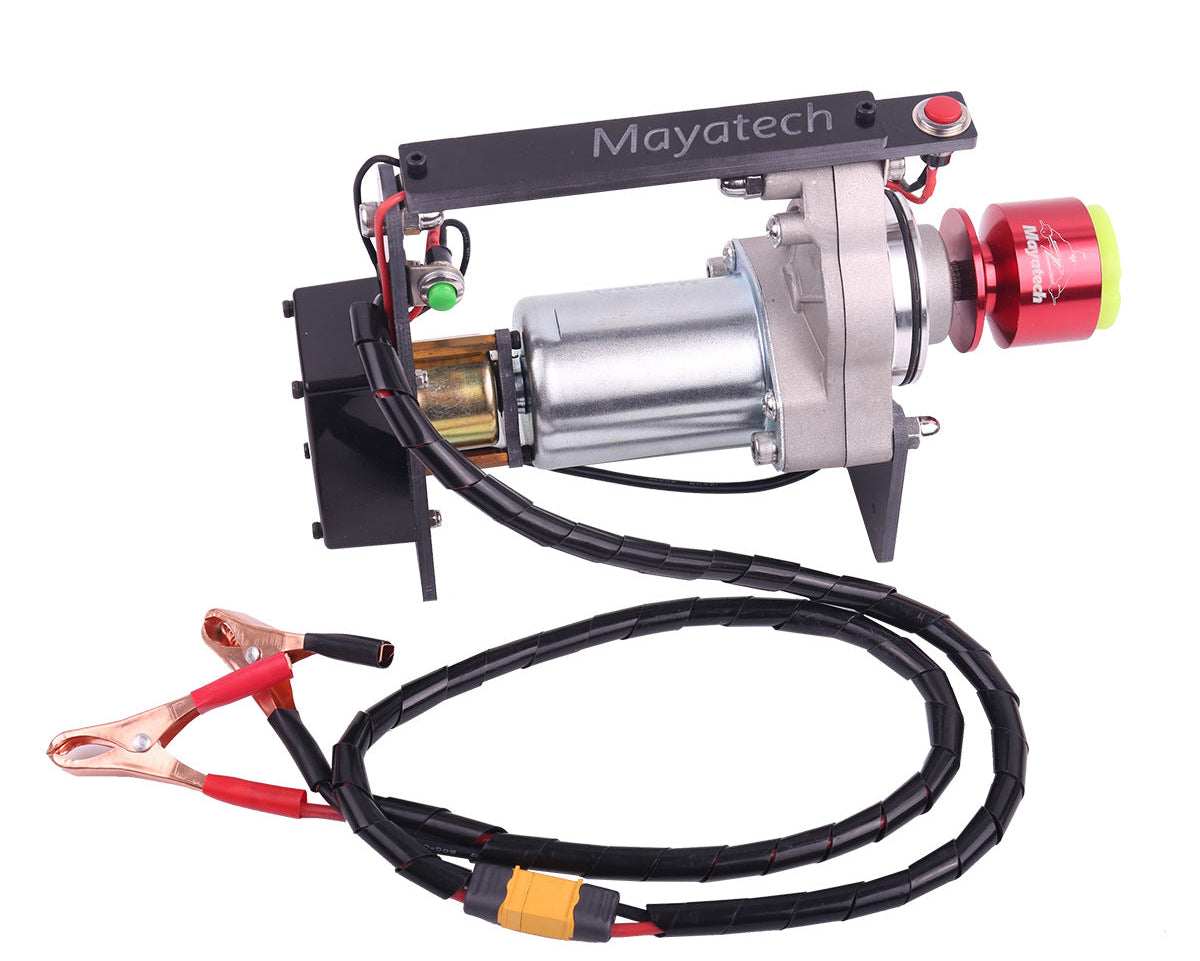

14AWG Silicone Cables & Quick Connectors
Includes 100% pure high-temperature 14AWG silicone wire protected by spiral wrap sleeving to resist field abrasion and fuel corrosion. Comes pre-wired with an inline XT60 plug and detachable heavy-duty car battery alligator clips.

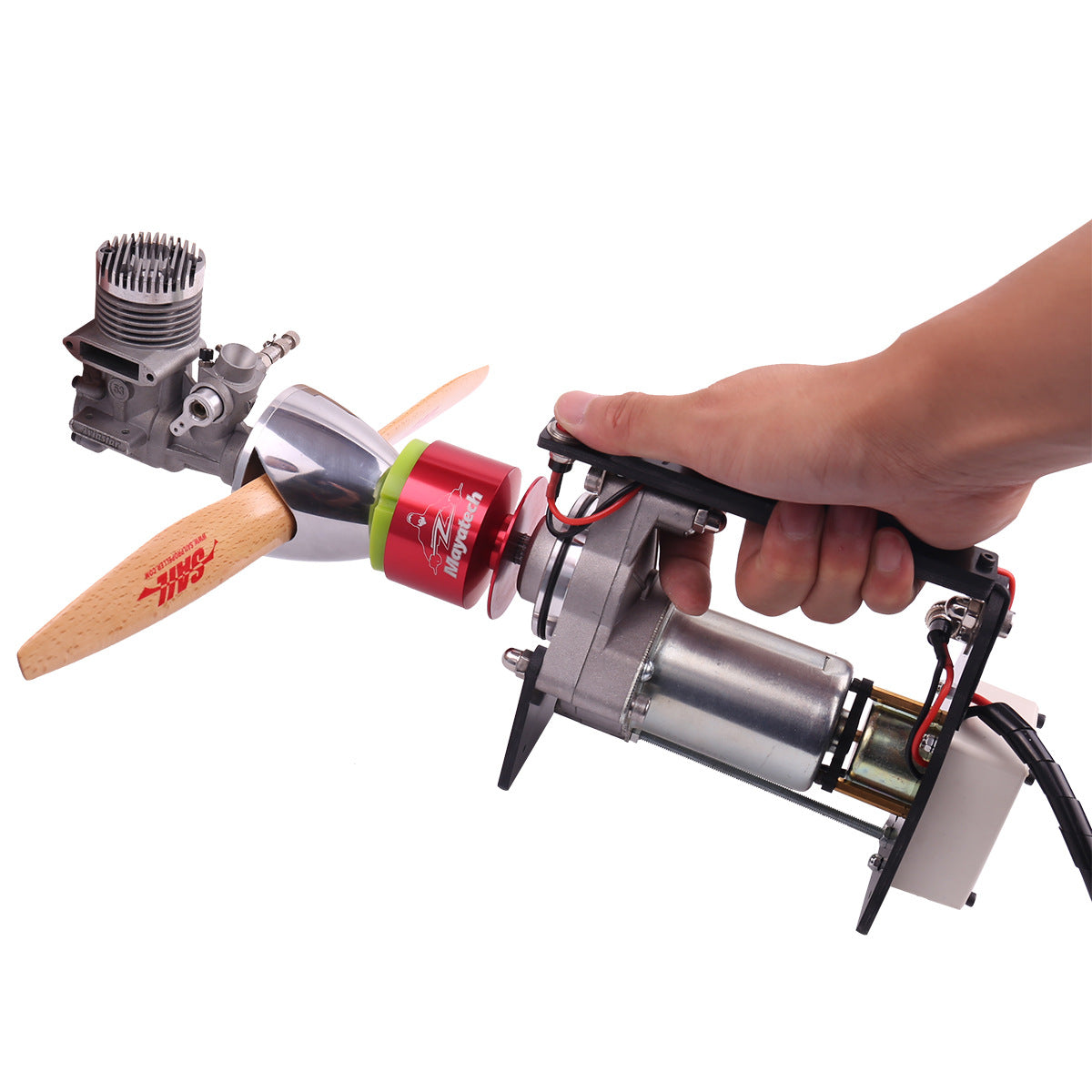

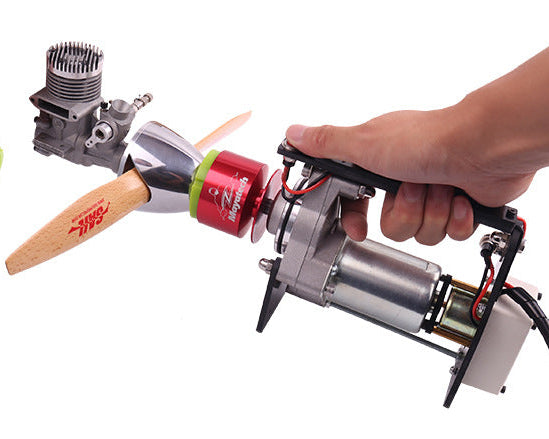

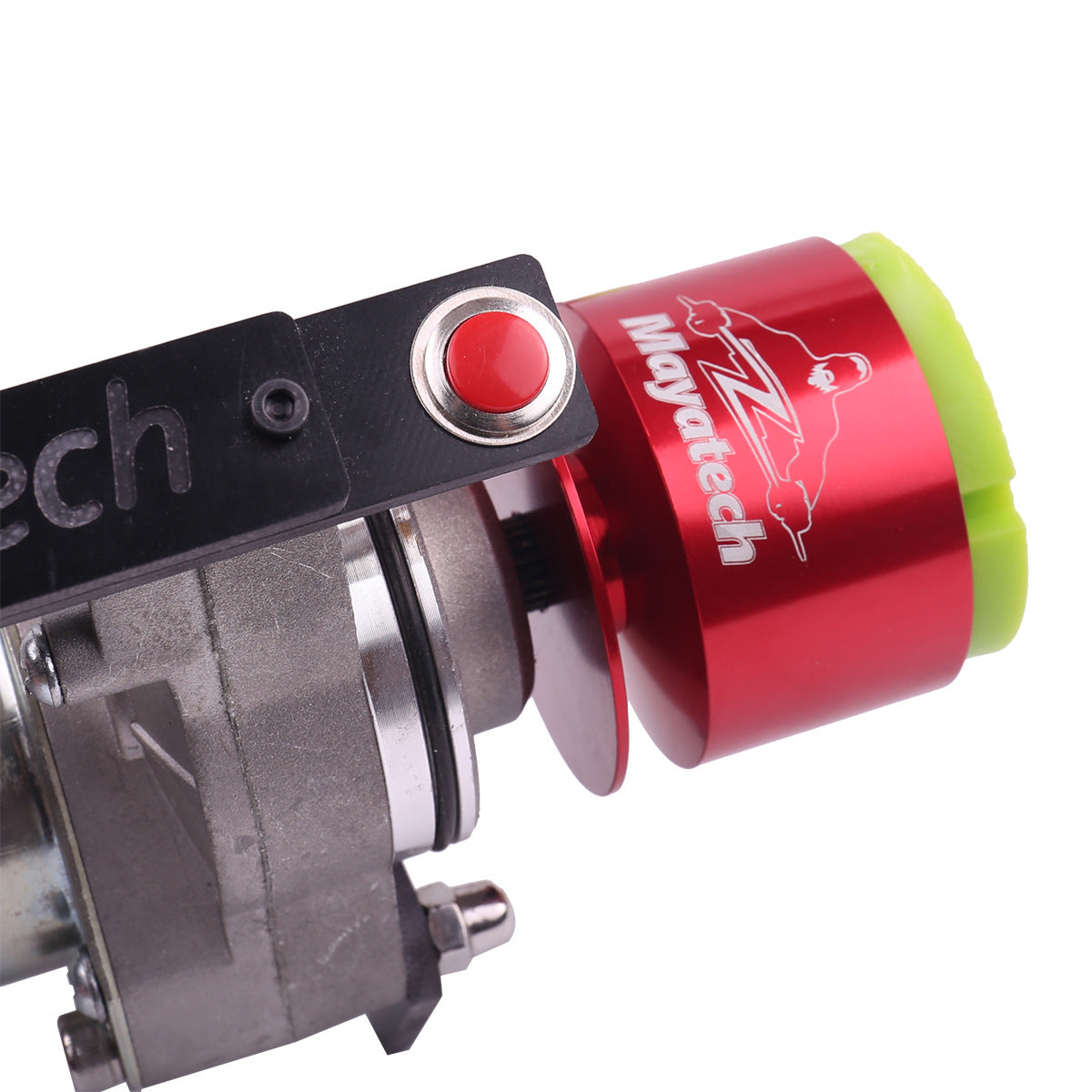

Spline-Keyed Drive Cup & High-Tack Silicone Cone
Features a precision CNC aluminum drive cup with internal splines to prevent rotational slip. The included small high-wear, high-tack silicone rubber cone offers slip-free grip on spinners up to 2.75 inches or optional helicopter starting wands.
Grade 12.9 Titanium-Steel Hardware
Built for rigorous field use with corrosion-resistant stainless steel main bolts and Grade 12.9 high-tensile titanium-alloy steel screws at all high-stress fastening points to prevent stripping and frame flexing.
Technical Specifications
| Specification Parameter | Technical Detail (Small Head Version) |
|---|---|
| Brand & Model | Mayatech 110cc Geared Starter (Small Head) |
| Dimensions (L × W × H) | 237 mm × 85 mm × 144 mm |
| Total Unit Weight | 1425g |
| Operating Voltage | 12V – 18V DC (Compatible with 3S–4S LiPo or 12V Lead-Acid) |
| Max Current Draw | 40A |
| Starter Cup Type | Small Aluminum Starter Cup (Spline Keyed) |

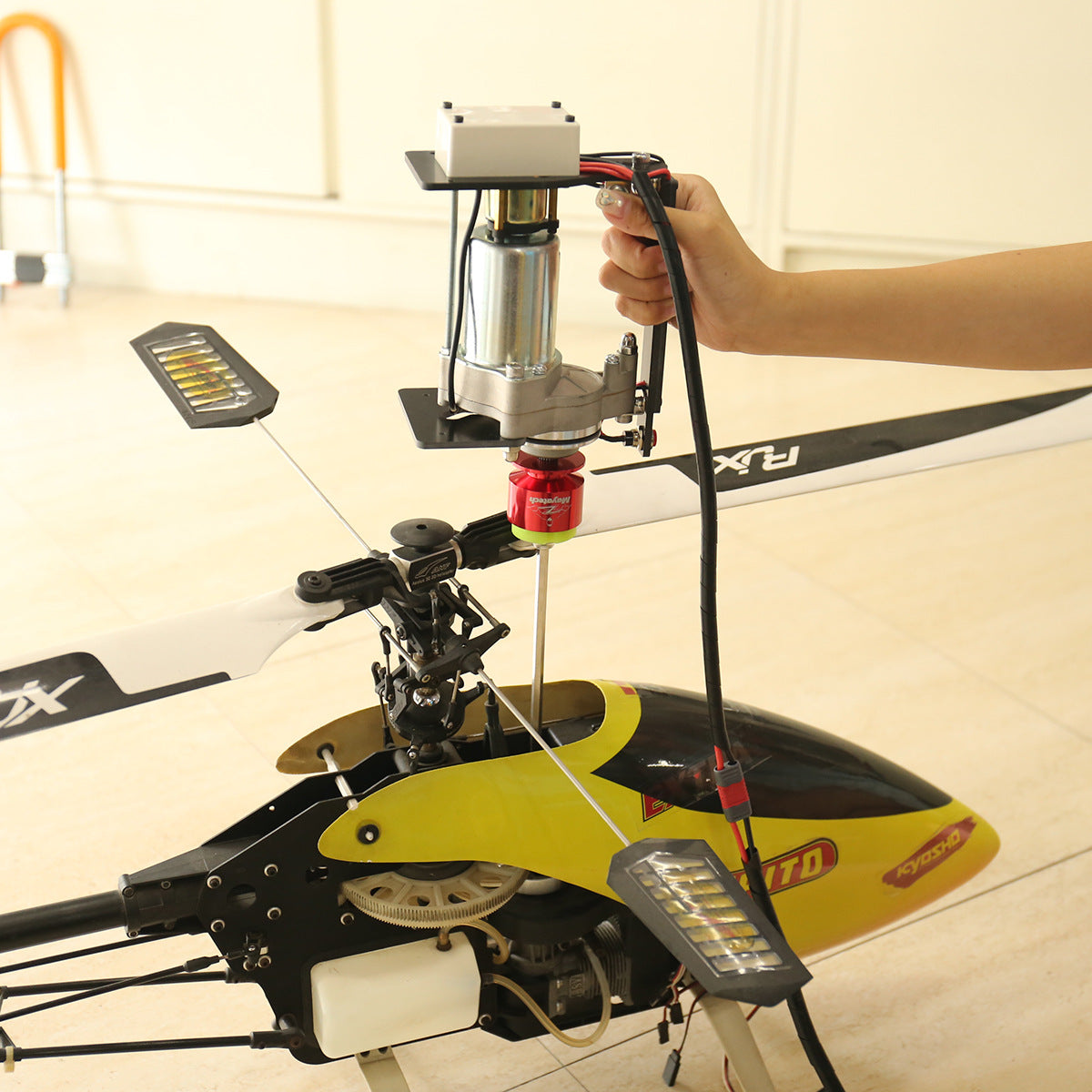

| Compatible Aircraft Type | Fixed-Wing Aircraft & Helicopters (Starter rod optional) |
| Spinner Size Compatibility | 2.75 inches (≤ 70 mm) and below |
| Methanol / Glow Engine Size | .15 to .90 class (15–90 grade) |
| Gasoline Engine Size | 15cc to 26cc (15–260 class) |
| Motor & Gear Ratio | 110cc 4-stroke motorcycle motor with 6:1 reduction gear |
| Cable Specs & Length | 500mm main lead + 1m 14AWG silicone extension cable |
| Power Connectors | XT60 Male Plug + Heavy-Duty Alligator Clips |
| Frame & Fastener Materials | 4.0mm FR4 Fiberglass, CNC Anodized Alloy, Grade 12.9 Screws |
