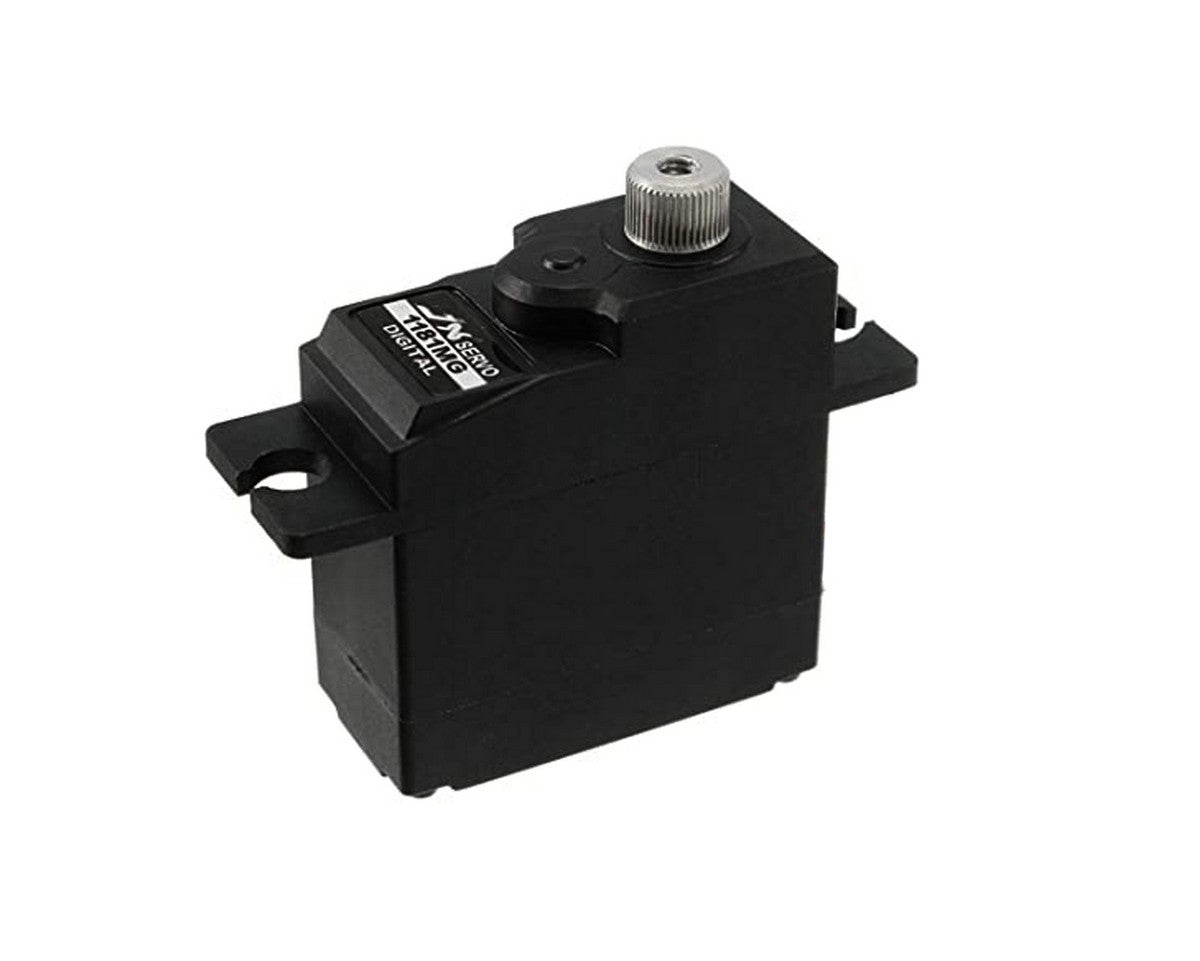

JX PDI-1181MG 17g Digital Servo 3kg 0.13sec Metal Gear For 1/18 RC

Product Overview

If your stock plastic gear servo in 1/18 to 1/12 scale RC car is stripping out or feels sluggish when steering, this is the best value replacement. It features a tough all-metal gear train, a digital processing chip, and a compact 17g mini form factor. It delivers crisp, immediate steering response with minimal dead band, eliminating steering wobble and ensuring precise control.

Upgrading your servo is a high-return investment to improve handling for a low cost, especially for off-road bashers operating on rough terrain that demands extra steering torque. This upgrade benefits entry-level RC enthusiasts, budget bashers, and scale crawler builders using WPL and MN trucks.

The PDI-1181MG accepts up to 6.0V high-voltage input for enhanced torque and speed. However, most budget-conscious users rely on a standard 5V input. Even at 4.8V, the PDI-1181MG delivers 3.0 kg-cm of torque and a 0.13-second speed, which is a major upgrade over stock units. Please check your chassis dimensions for fitting before purchasing.

Key Features

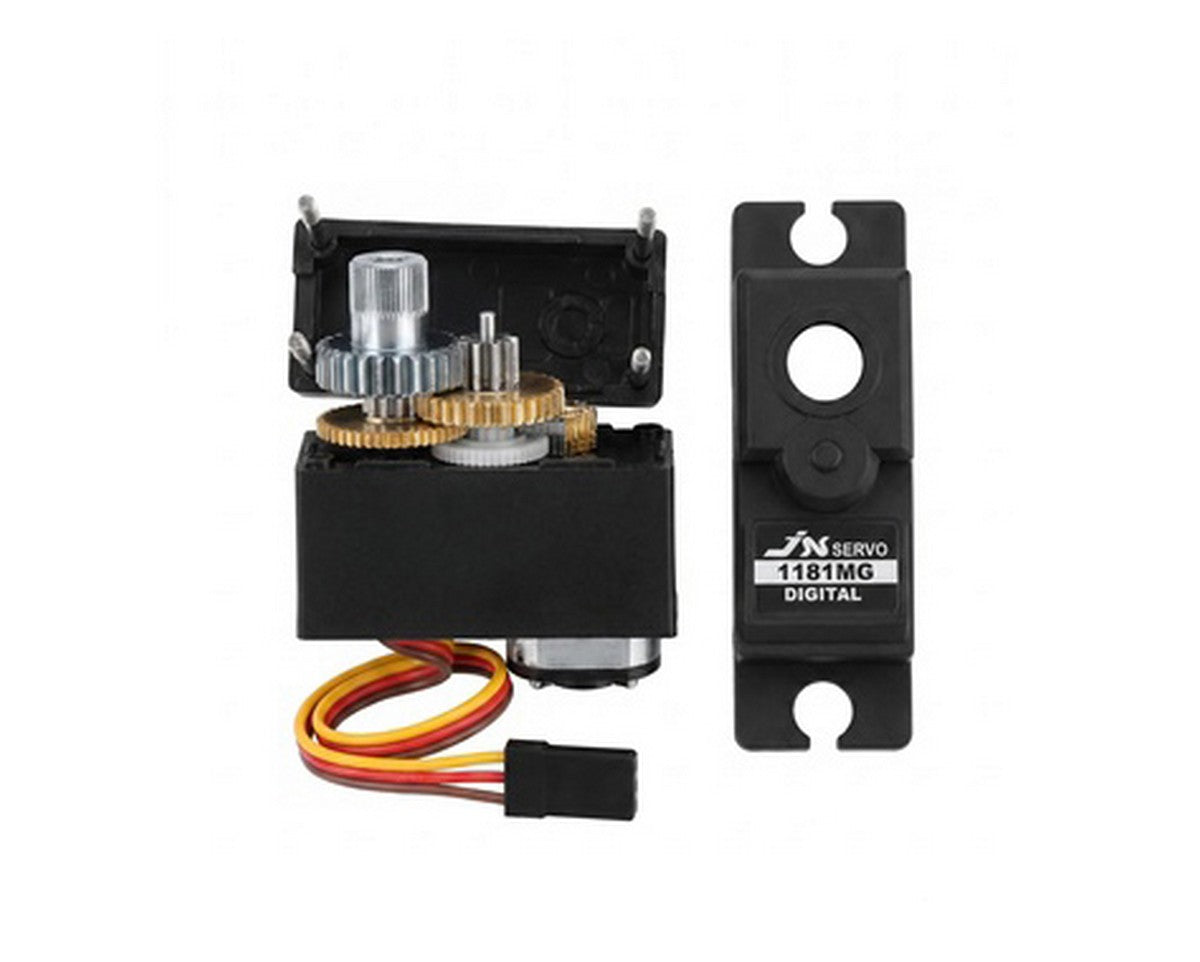

• Durable All-Metal Gears: Full-metal internal gear set prevents stripping under high impact and heavy steering resistance.
• Digital Signal Precision: Features a 2μs dead band and fast digital processing for tight centering and zero steering lag.
• High Torque-to-Weight Ratio: Delivers up to 3.5 kg-cm torque at 6.0V in a lightweight, compact 17.5g housing.
• Direct Fit & Plug-and-Play: Comes pre-wired with a standard JR 180mm connector and mounting accessories for hassle-free installation.

Specifications

• Brand: JX Servo
• Model: PDI-1181MG
• Dead Band: 2μs
• Working Frequency: 1520μs / 300Hz
• Motor Type: Core Motor
• Operating Voltage: DC 4.8V – 6.0V
• Operating Speed (4.8V): 0.13 sec/60°
• Operating Speed (6.0V): 0.11 sec/60°
• Stall Torque (4.8V): 3.0 kg.cm
• Stall Torque (6.0V): 3.5 kg.cm

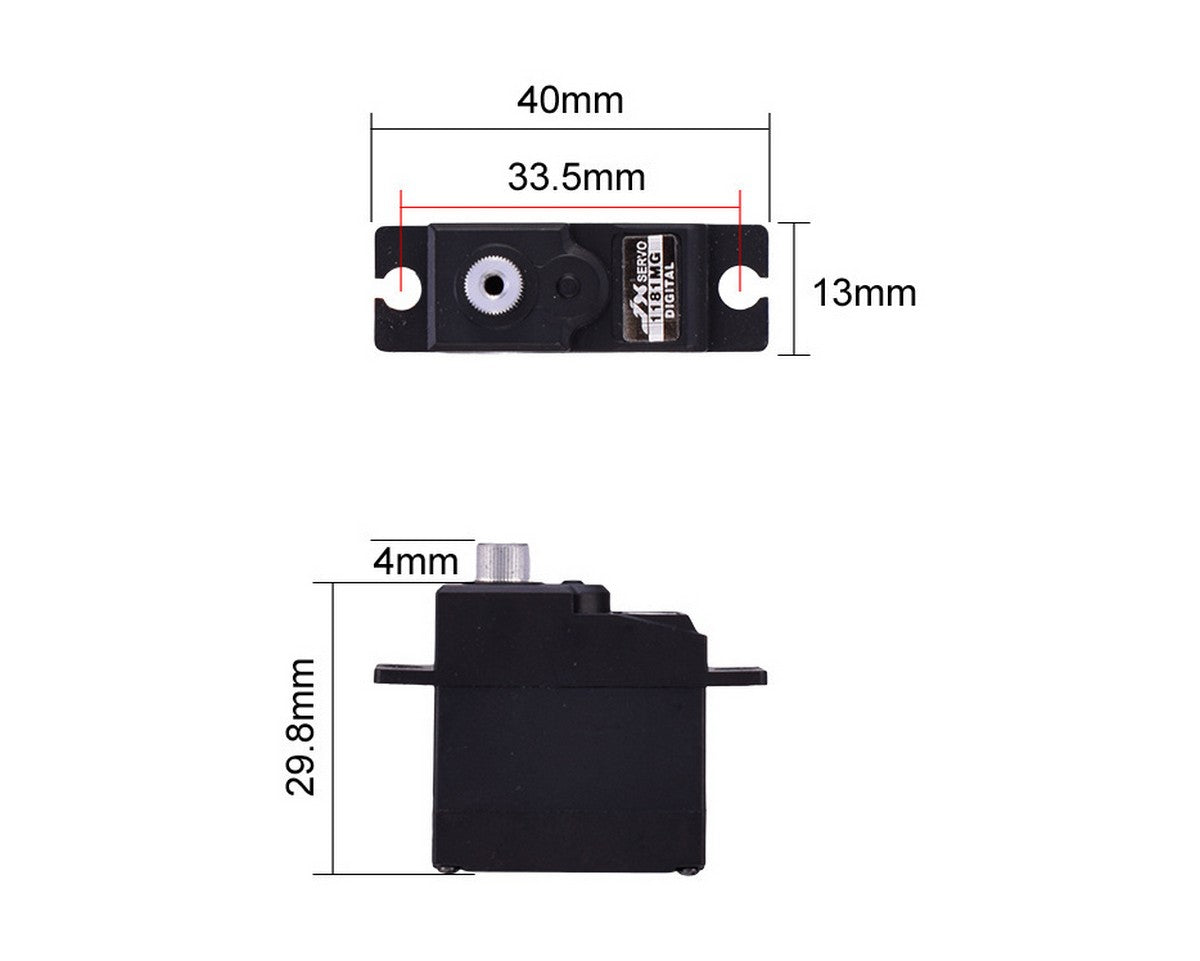

• Dimensions: 28 x 13 x 29.8 mm (Case length: 28mm, Top flange length: 40mm, Hole-to-hole distance: 33.5mm)
• Weight: 17.5g
• Connector Wire Length: JR 180mm

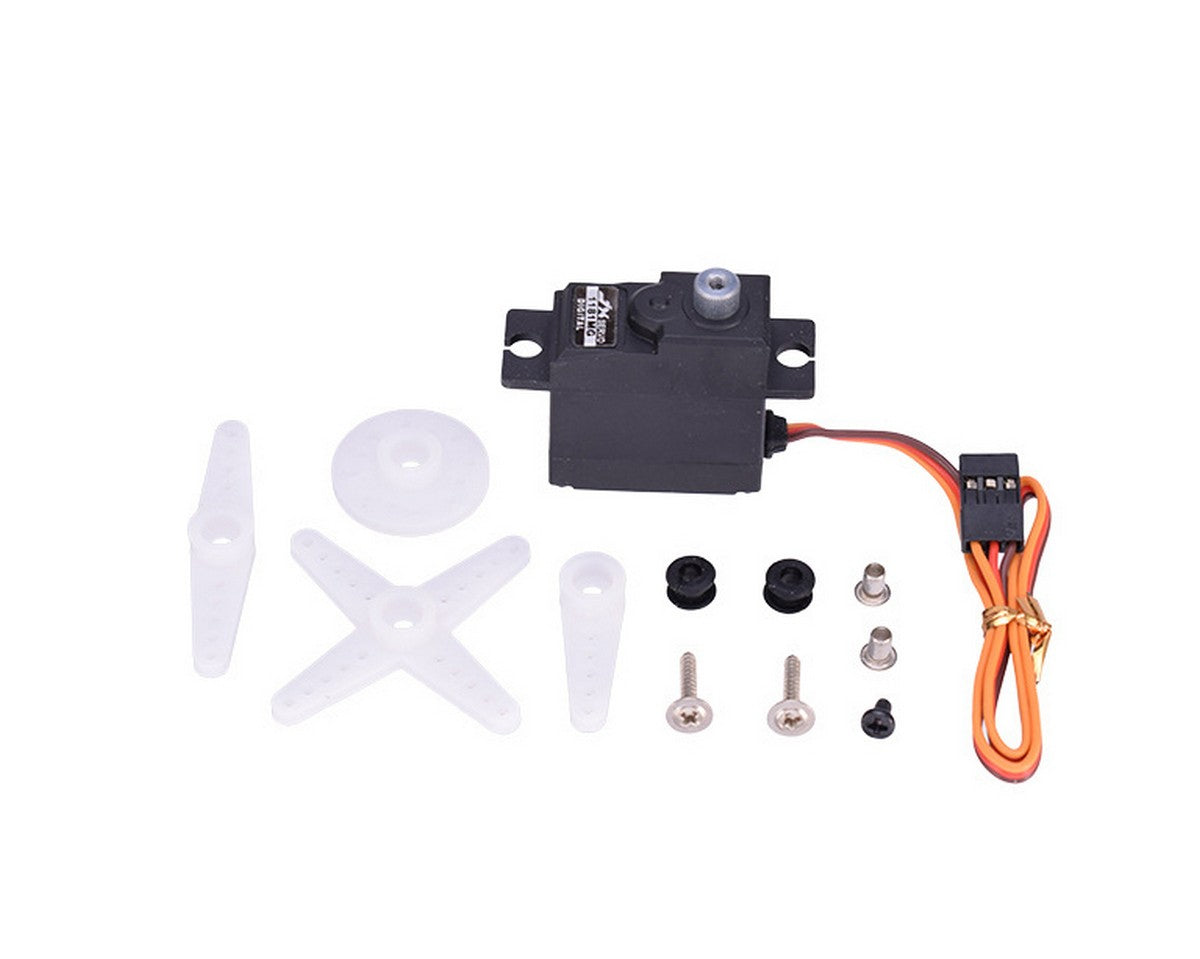

What's in the Box

• 1 x JX PDI-1181MG Metal Gear Digital Servo
• 1 x Accessory & Mounting Hardware Set

Important Notes & Warnings

• Align screws carefully during installation to avoid stripping plastic threads or damaging the chassis mounts.
• Not recommended for large 1/8 scale vehicles or extreme mud and water bashing. Do not submerge or operate in water.
