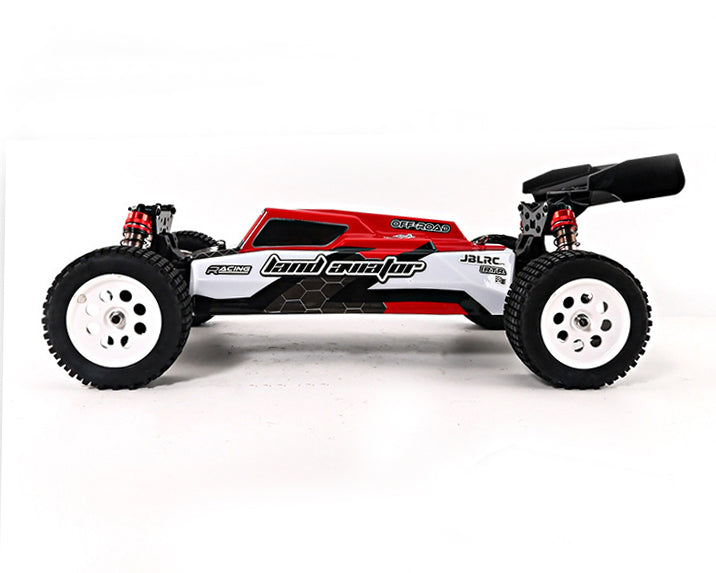

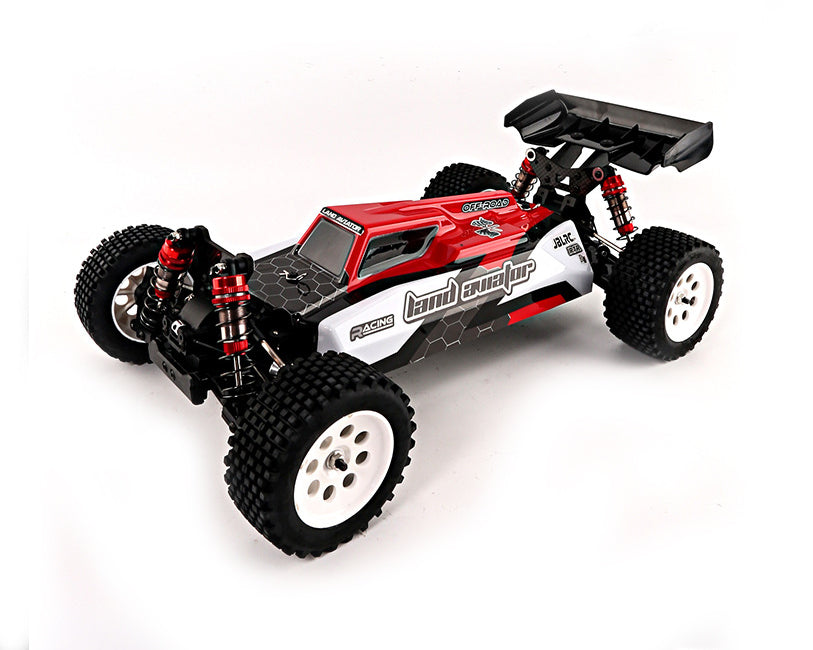

The Jiabaile Land Aviator is a proper hobby-grade buggy designed for beginners who want real racer quality buggy at reasonable price. It comes fully equipped with a Surpass 3650 3800kv motor, HobbyWing10BL 160A ESC, and DumboRC X5P Gyro radio system for locked-in, precise control right out of the gate.
Constructed with premium components. It features a high-torque 10kg metal-gear servos with servo savers to absorb impact energy and during collisions. full CNC machined aluminum setup, adjustable suspension. Impact-resistant nylon are utilized throughout the chassis to maximize energy absorption, with a 3mm aluminum alloy rear plate adds a layer of protection. Suspension system are adjustable for toe tuning to suit different track conditions and driving styles.
The Jabaile Brand introduces 4 types of off road RC car with a shared chassis platform. This version is a Buggy RC car and it excel at precesion control and work best on Off road race Track.
Click here to learn the difference of RC Buggy and Truggy.
Heads up: This buggy does not include a battery or charger. You will need to provide your own 2S/ 3S LiPo Battery that fits the 97x49x34mm battery tray to get this rig moving.
Key Features
-
Quick-Release Differentials: The diff housings feature a quick-release design for rapid disassembly and effortless maintenance.
-
Triple Differential Drivetrain: Includes a gear differential at the front, center (middle), and rear. This configuration allows all four wheels to rotate at independent speeds, maximizing traction, handling stability, and cornering precision on loose dirt.
-
Hardened Steel Drive Cups: Built to handle serious torque, the quenched steel drive cups offer extremely high durability.
-
Premium 12.9 Grade Hardware: The entire chassis utilizes 12.9 grade high-strength hex screws with minimum tensile strength of 1,220 MPa. completely preventing stripped threads even after repeated teardowns.
-
Full Rubber-Sealed Bearings: 20 rubber-sealed bearings throughout the car to effectively block out dust and dirt, drastically extending the drivetrain's lifespan.
-
Steel CVDs & Tunable Shocks: Features four steel CVD driveshafts for stable power transfer, along with unequal-length shock absorbers and adjustable turnbuckles/arm mounts to precisely tune your geometry and 4-wheel grip.
Specification
- Model Name: Jiabaile JBL Land Aviator 1001
-
Vehicle Type: Off-Road Buggy
-
Drivetrain: 4WD with front, center, and rear differential
-
Adjustability: Tunable camber, toe, caster, and unequal-length shocks
-
Battery Tray Dimensions: 97x49x34mm
-
Completion Level: RTR (Requires Battery & Charger)
-
Scale: 1/10
ESC:Hobbywing 10BL60A brushless esc
Motor: Surpass hobby 3650 3800kv brushless motor
Servo:10kg metal gear steering servo
Runtime: About 15 Minutes
Remote Control Distance: 350M
Color: Red&White
What's in the Box
-
1x JBLRC Land Aviator 4WD Buggy
- DumboRC X5P Gyro radio system
- Sticker set
- Instruction Manual
- Accessories Pack
Required:
Recommended Battery: 2S/ 3S 11.4V 5600Mah Lipo
Remote Controller Battery: 4X AA Battery (Not Included)
