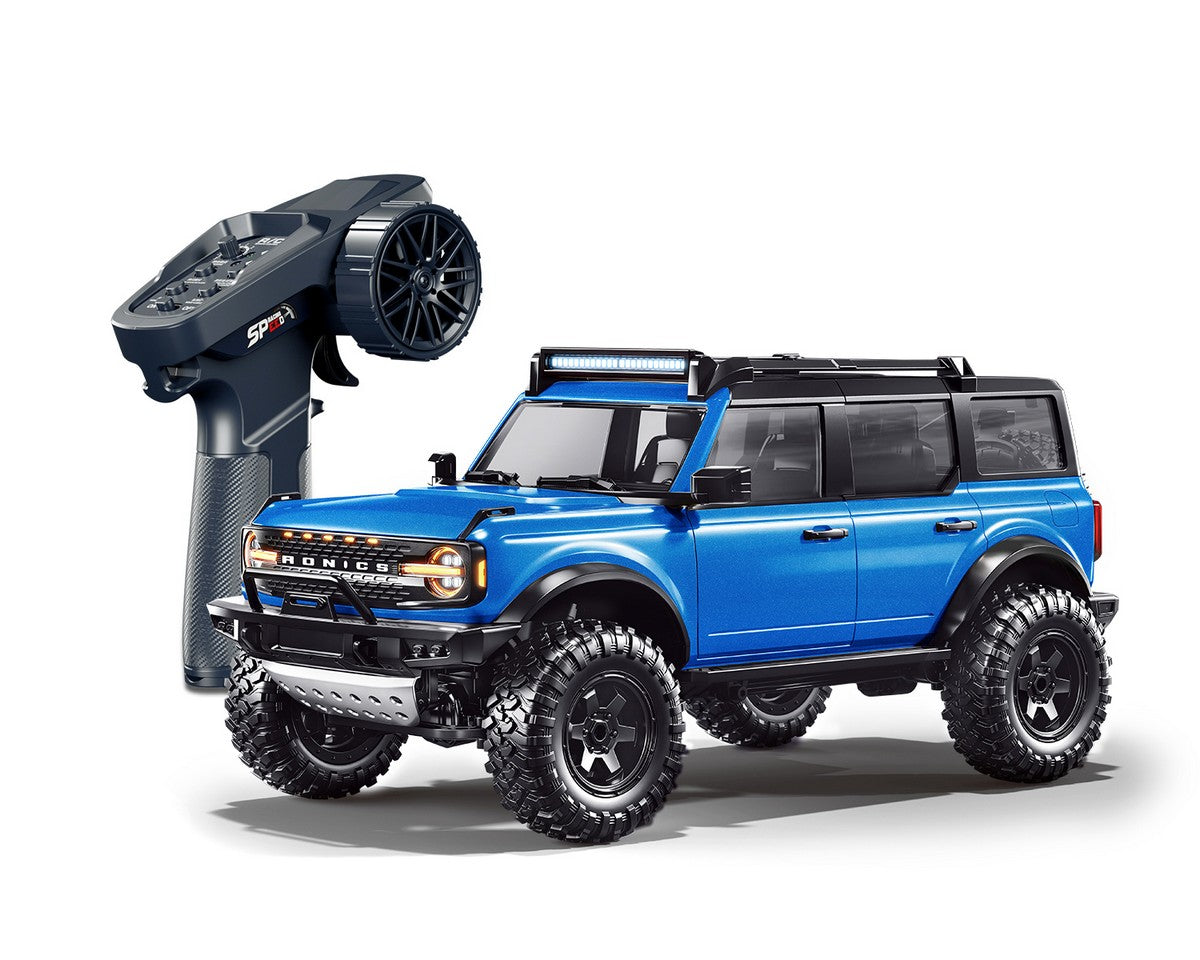

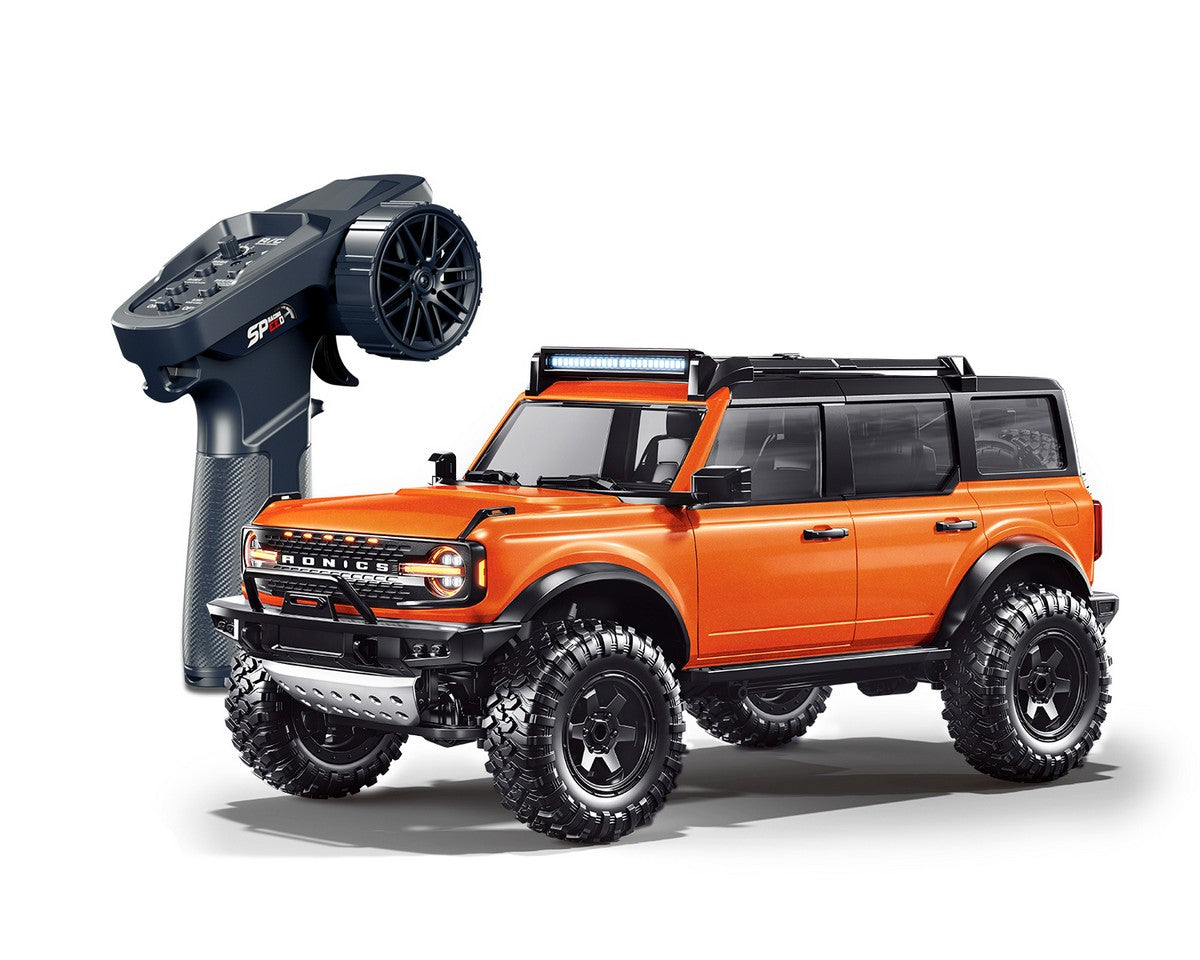

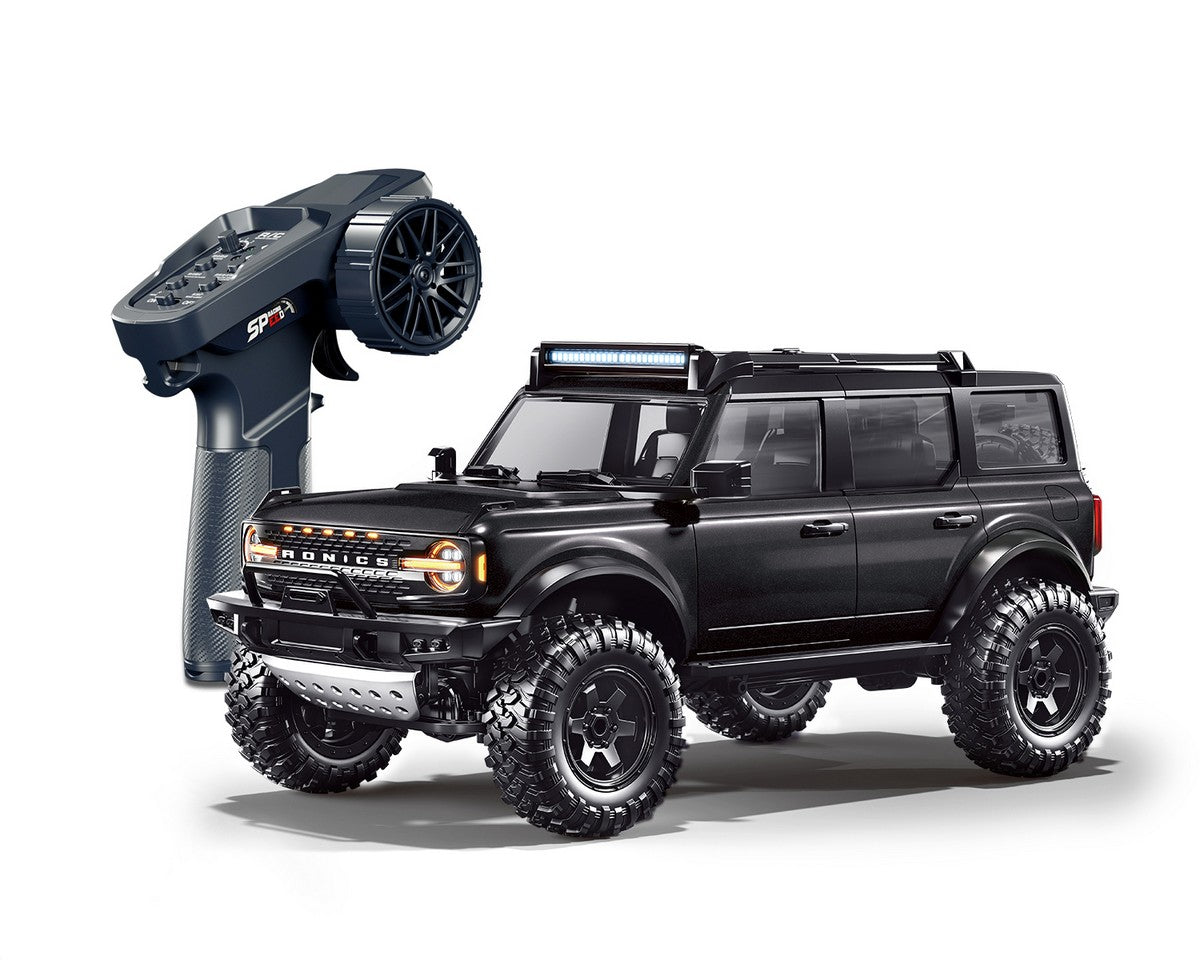

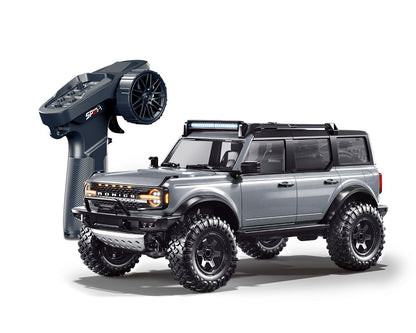

The Hstar R22 draws its direct design inspiration from the iconic off-roader originally born in 1966. Capturing the boxy stance, trail-ready clearance, and signature round front lighting. This 1/12 scale replica translates American classic nto a highly detailed package.

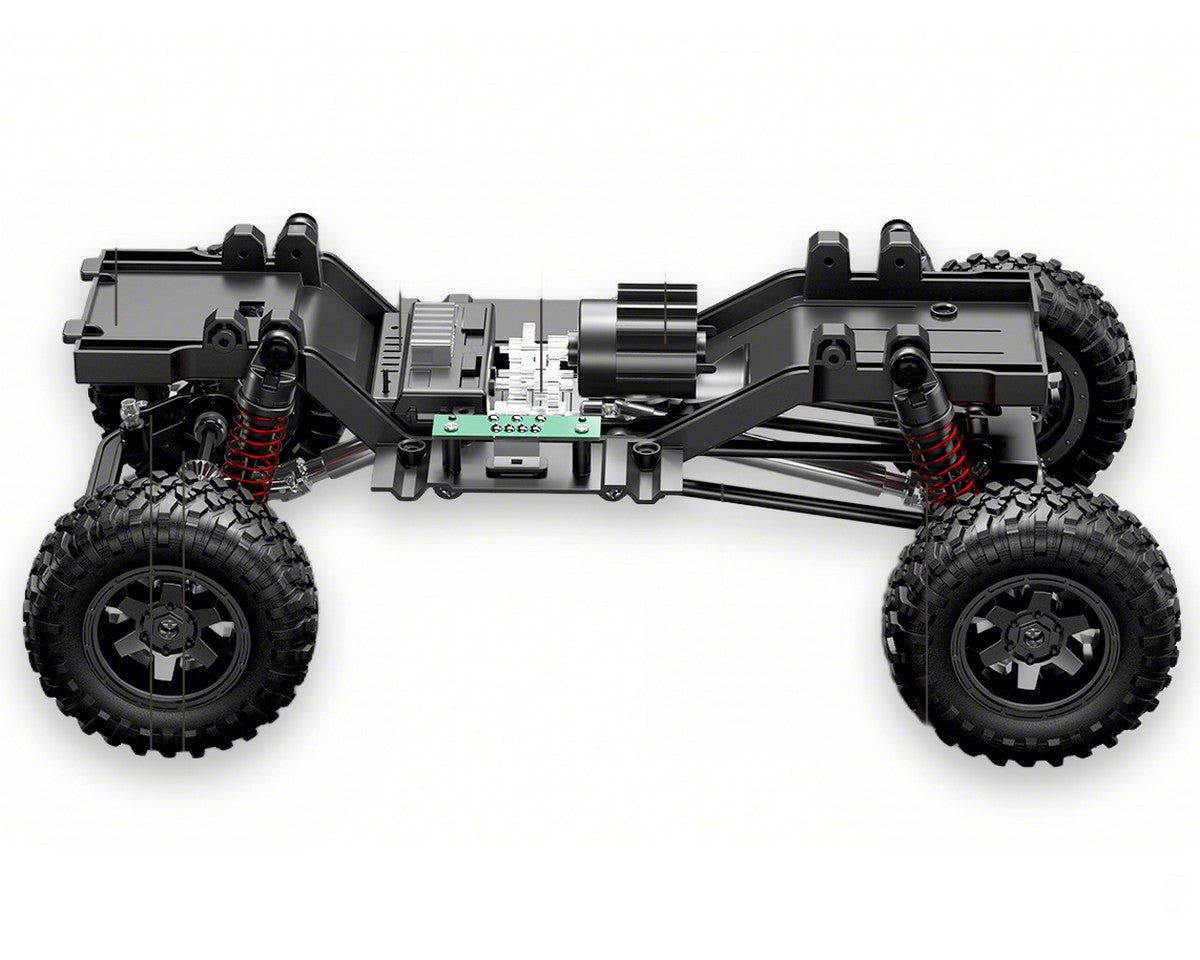

This RC Rock Crawler is good even as a static display. Beyond its metallic-painted finish, the R22 offers super authentic scale including functional opening front doors, hood, tailgate, and folding side mirrors. Beneath the detailed interior lies a full-metal transmission setup, including metal gears, metal driveshafts, and metal hex adapters. Powered by a high-torque RC380 motor paired with a 3-speed transmission, it delivers smooth, ultra-low-speed throttle control for technical crawling over rocks and trail obstacles.
Flip it into high gear and it tops out at 15 km/h. While this speed might not sound mind-blowing next to a dedicated basher, pushing a high-center-of-gravity crawler with soft, flexy suspension to its limit provides plenty of fun on the trails.
This trail truck is ideally suited for scale crawler enthusiasts, intermediate hobbyists looking for a feature-packed, full scale 1/12 scale rig. This is also the best gift for Kids that gets into RC hobby.
5. 6 Key Features
-
Full Metal Driveline & Transmission: Factory-fitted with metal differential gears, heavy-duty metal drive shafts, and metal drive couplers for maximum drivetrain longevity under load.
-
Scale Functional Body Details: Features opening side doors, an opening front hood (battery hatch), a functional rear tailgate, and folding exterior mirrors.
-
Integrated Dynamic Light Kit: Realistic lighting setup including daytime running lights, low/high beam headlights, sequential hazard/turn signals, reverse lights, and a roof light bar.
-
Direct Type-C Fast-Charge Battery: Enclosed modular cable-free 7.4V 1500mAh Li-ion battery. Featuring an onboard Type-C port for charging without separate plug clutter.
-
Precise Low-Speed Crawling Control: Driven by a high-torque 380-class brushed motor matched with a 20g 3-wire digital servo for linear throttle and steering response.
-
Metallic Paint Finish: Factory painted in a high-gloss metallic finish with realistic interior dash and seat details.
6. Specification List
-
Scale: 1:12
-
Drive System: 4WD (4-Wheel Drive)
-
Dimensions: 400 x 177 x 172 mm
-
Wheelbase: 230 mm
-
Track Width (Front/Rear): 145 mm / 145 mm
-
Tire Diameter / Width: 78 mm / 31 mm
-
Wheel Rim Diameter: 45 mm (5.3 mm Hex Adapter)
-
Vehicle Weight: 1200 g
-
Motor: RC380SH-5522-52 High-Torque Brushed Motor (26,000 RPM)
-
Steering Servo: 20g 3-wire Waterproof Digital Servo
-
Gear Ratio: 46:1
-
Transmission: 3-Speed Gearbox
-
Max Speed: 5.7-15 km/h (Depend on gear ratio)
-

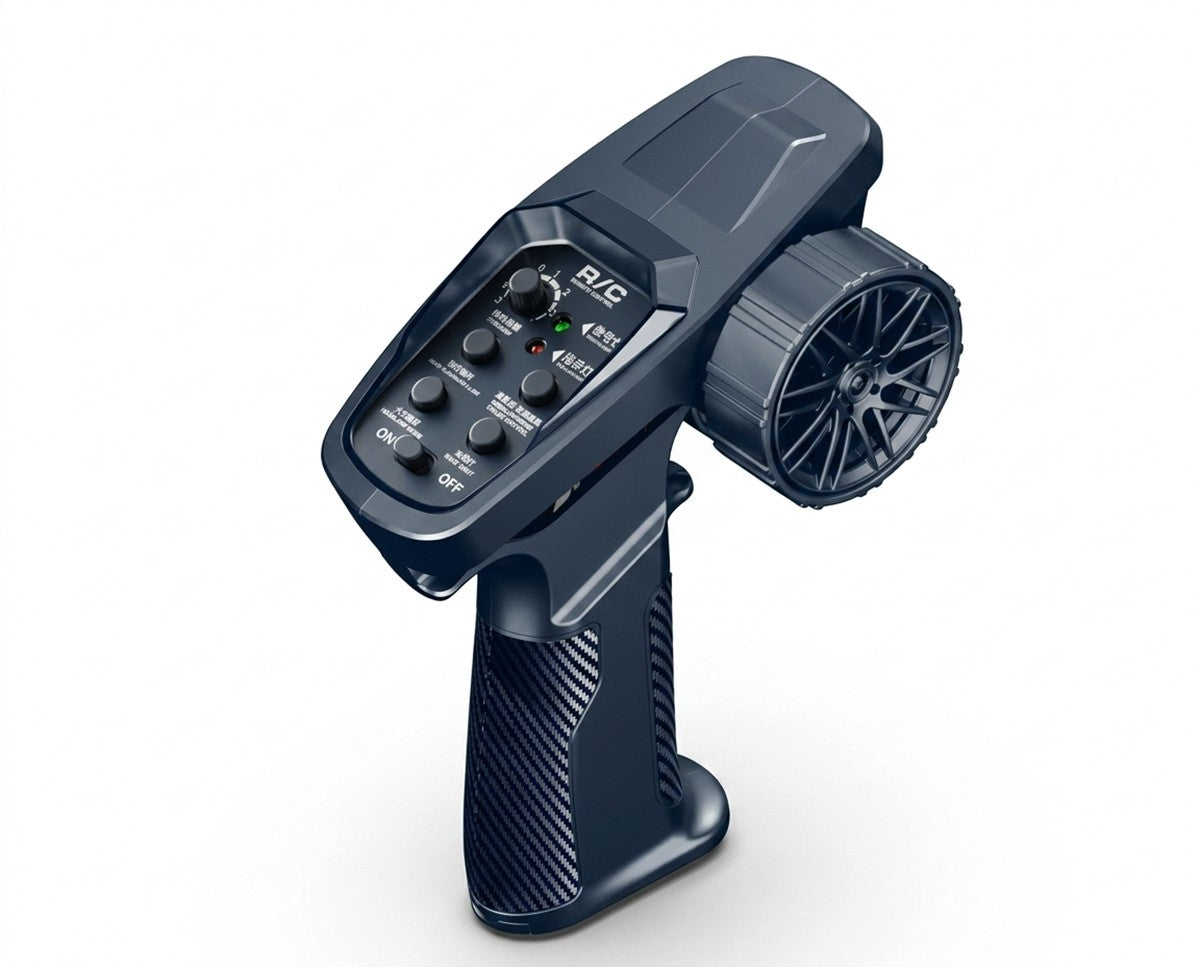

Radio System: 2.4GHz 4-Channel Pistol Grip (40m Control Range)
-
Battery: 7.4V 1500mAh 11.1Wh Modular Li-ion (Direct Type-C USB Charging)
-
Run Time: ~30 to 40+ Minutes
-
Charge Time: Approx. 4 hours - During charging via the USB cable, the red LED stays solid while the green LED flashes. Once fully charged, the green LED turns solid.
-
Lighting Configuration: Headlights x4, Brake Lights x2, Front Turn Lights x2, Rear Turn Lights x2, Reverse Lights x2, Roof Light Bar x1
-
Model Code: NO.R22 (R22-05)
7. What's in the Box
-
1 x Hstar R22 1/12 Scale 4WD Rock Crawler (Yellow)
-
1 x 2.4GHz 4-Channel Remote Controller
-
1 x 7.4V 1500mAh Modular Battery Pack
-
1 x USB Type-C Charging Cable
-
1 x Transmitter Foam Steering Wheel Grip Case
-
1 x Mini Screwdriver
-
1 x Product Manual
