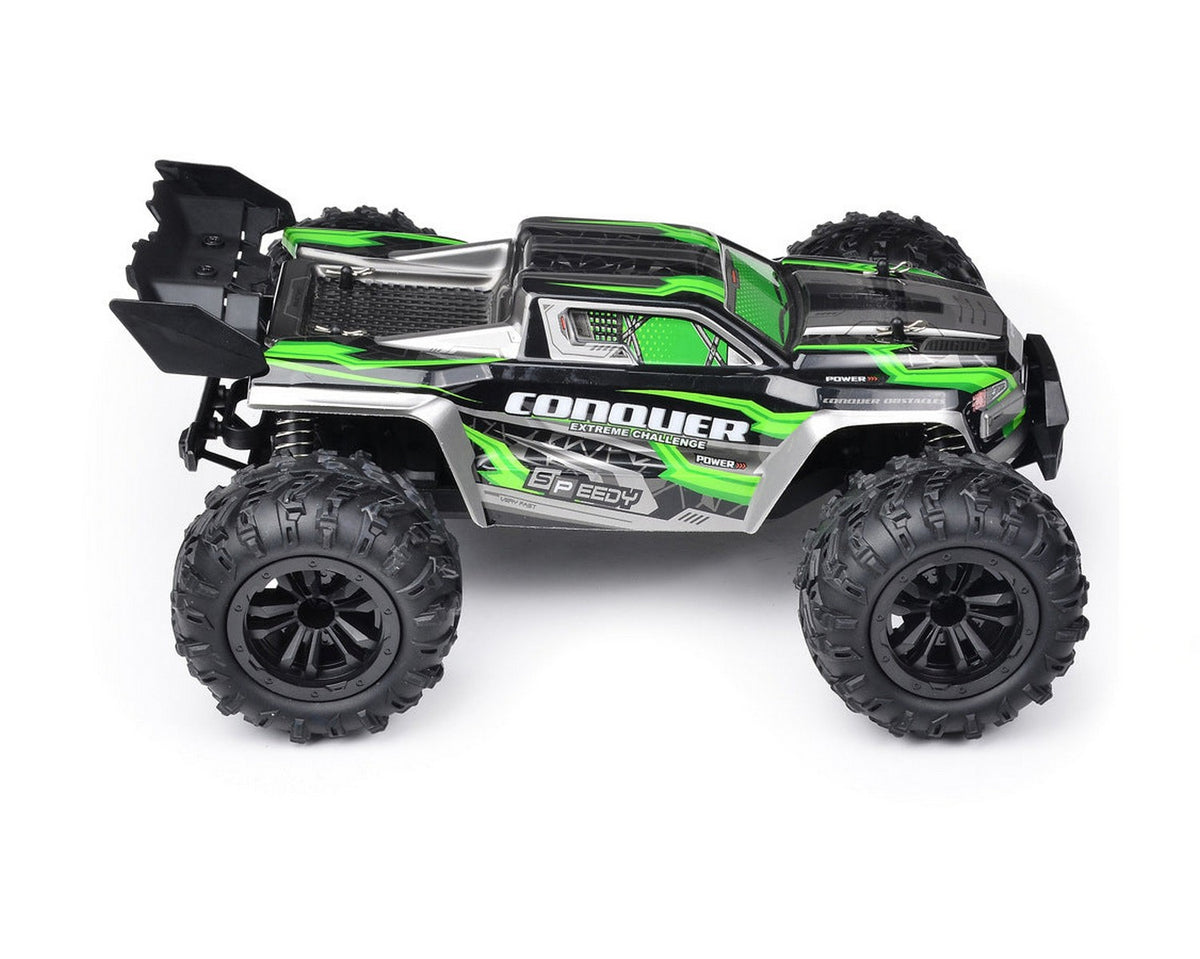

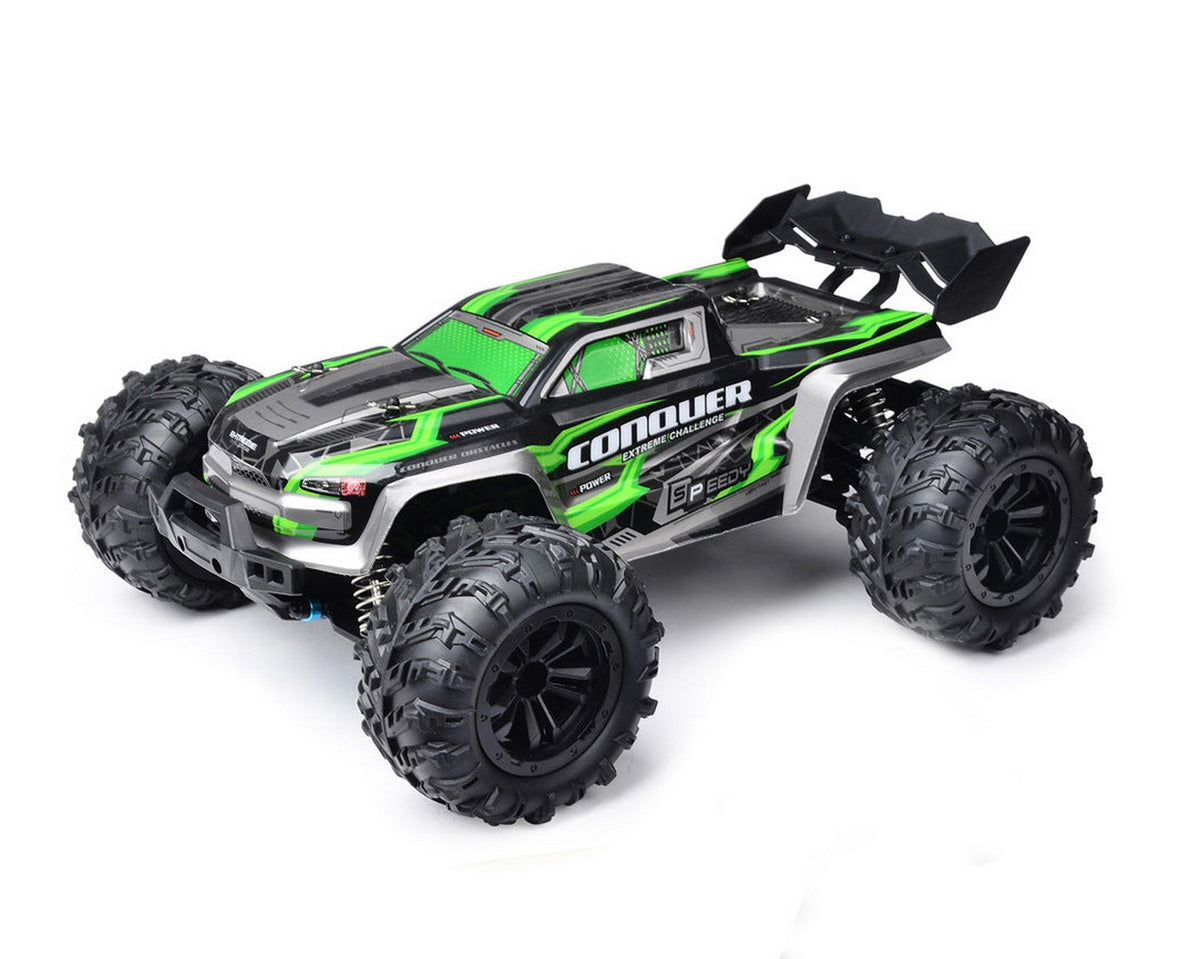

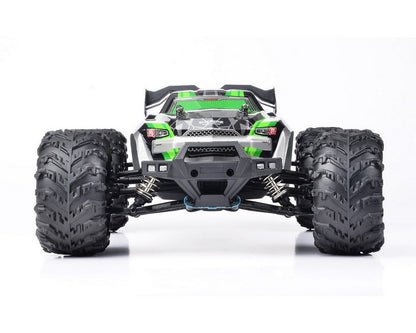

SCY-16102 1/16 4WD Brushed Monster Truck
Key Features & Engineering

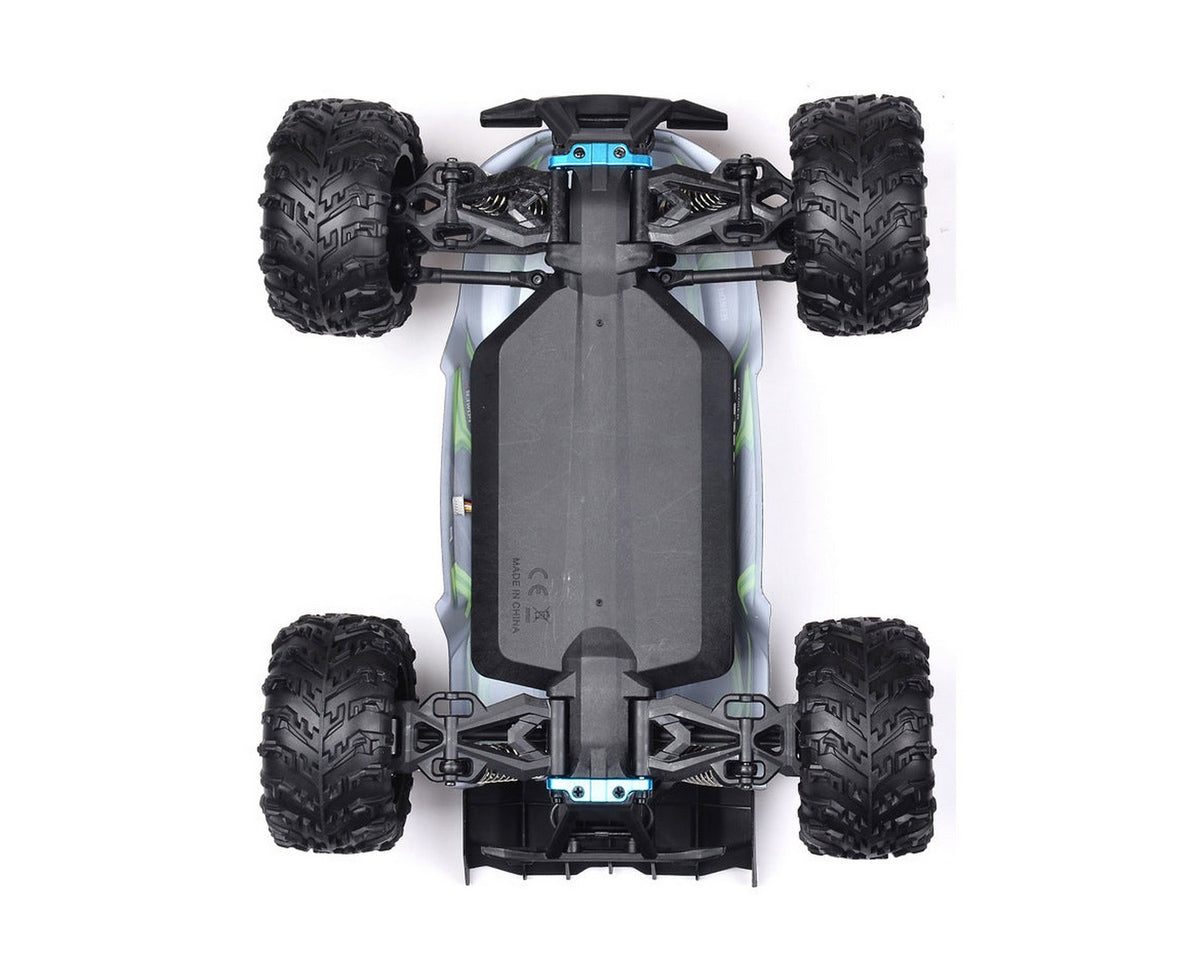

Durable 4WD Drivetrain
Equipped with front and rear planetary gear differentials, a rigid metal upper deck plate, metal arm mounts, and powder metallurgy main gears for maximum durability when pounding the throttle.

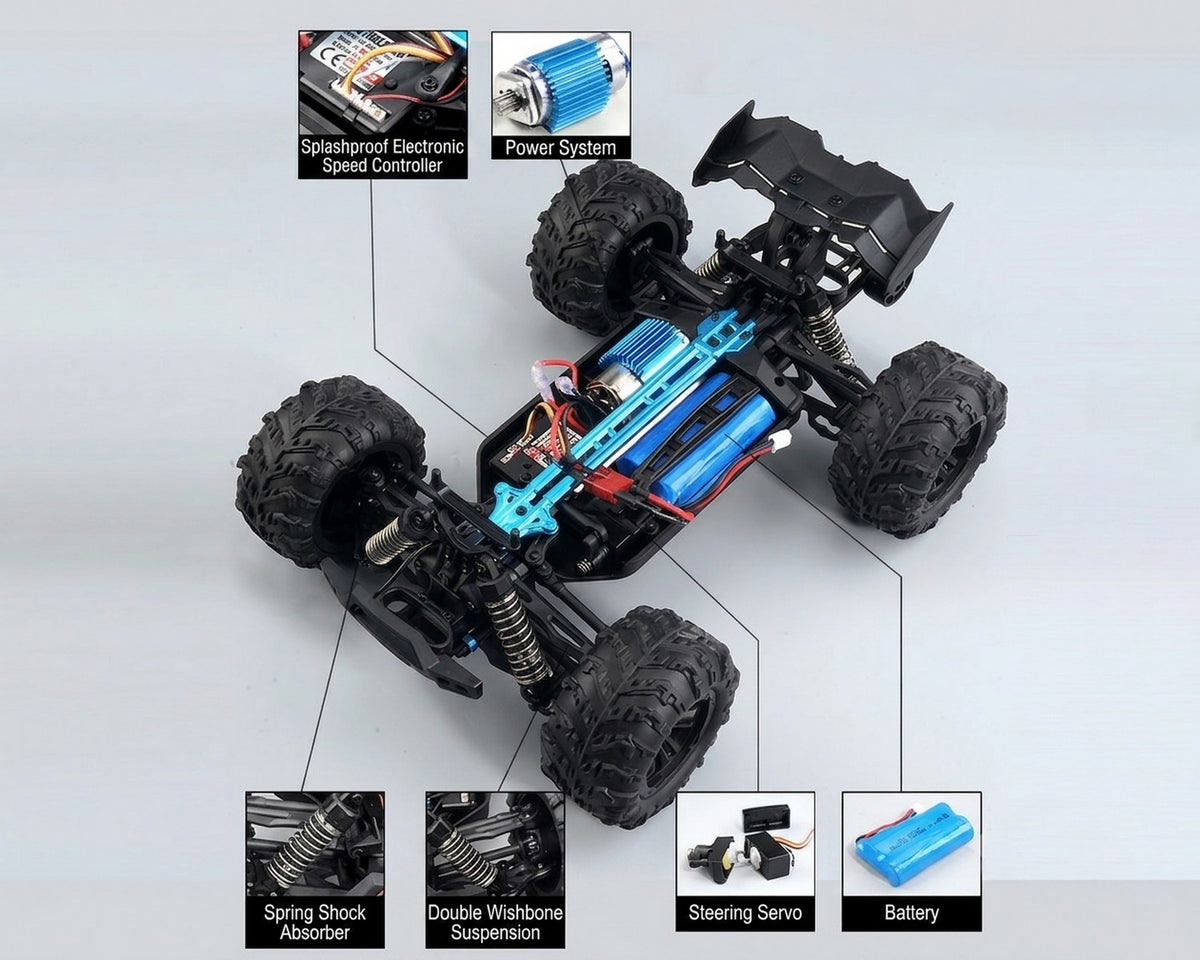

Splash-Proof Electronics
Integrated 2.4GHz receiver/30A ESC unit featuring an IPX4 splash-resistant coating, paired with a high-response 17g 5-wire digital steering servo.

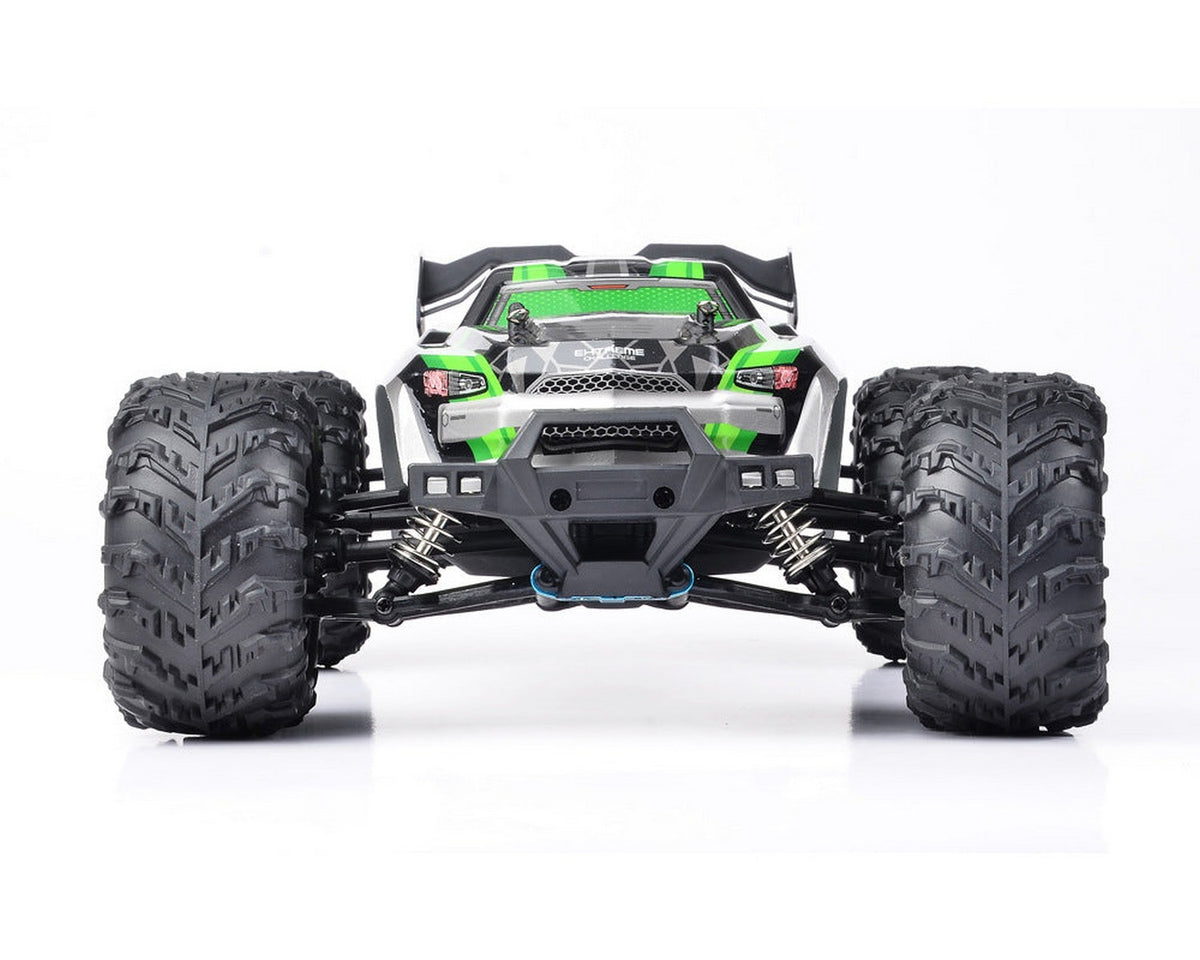

Scale Night Lighting
Built-in multi-mode LED headlights with three selectable transmitter modes (Always On, Slow Flash, Fast Flash) for low-light bash sessions.
High-Torque Brushed Power
High-magnetic RC390 carbon-brushed motor fitted with an anodized aluminum heatsink for cool running and efficient thermal dissipation under continuous load.

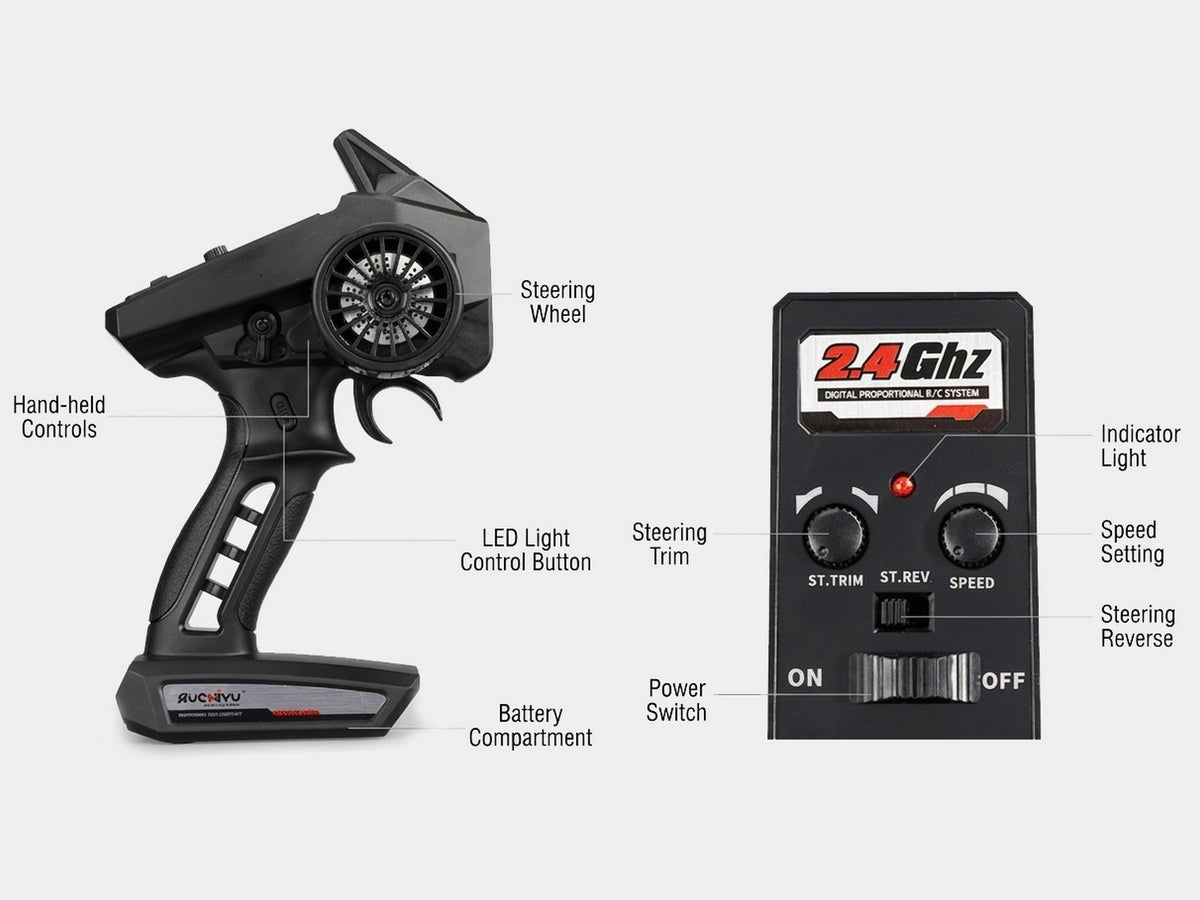

Proportional 2.4GHz Control
Full-proportional pistol grip transmitter with dual-rate speed trim, steering trim, steering reverse, and single-hand control functions over an 80+ meter range.
Complete RTR Package
Includes a high-capacity 7.4V 1300mAh Li-ion power pack with Deans/T-Plug connector, a wheelie bar, USB charger, and maintenance tools to get you running immediately.
Technical Specifications
| Specification Parameter | Technical Detail |
|---|---|

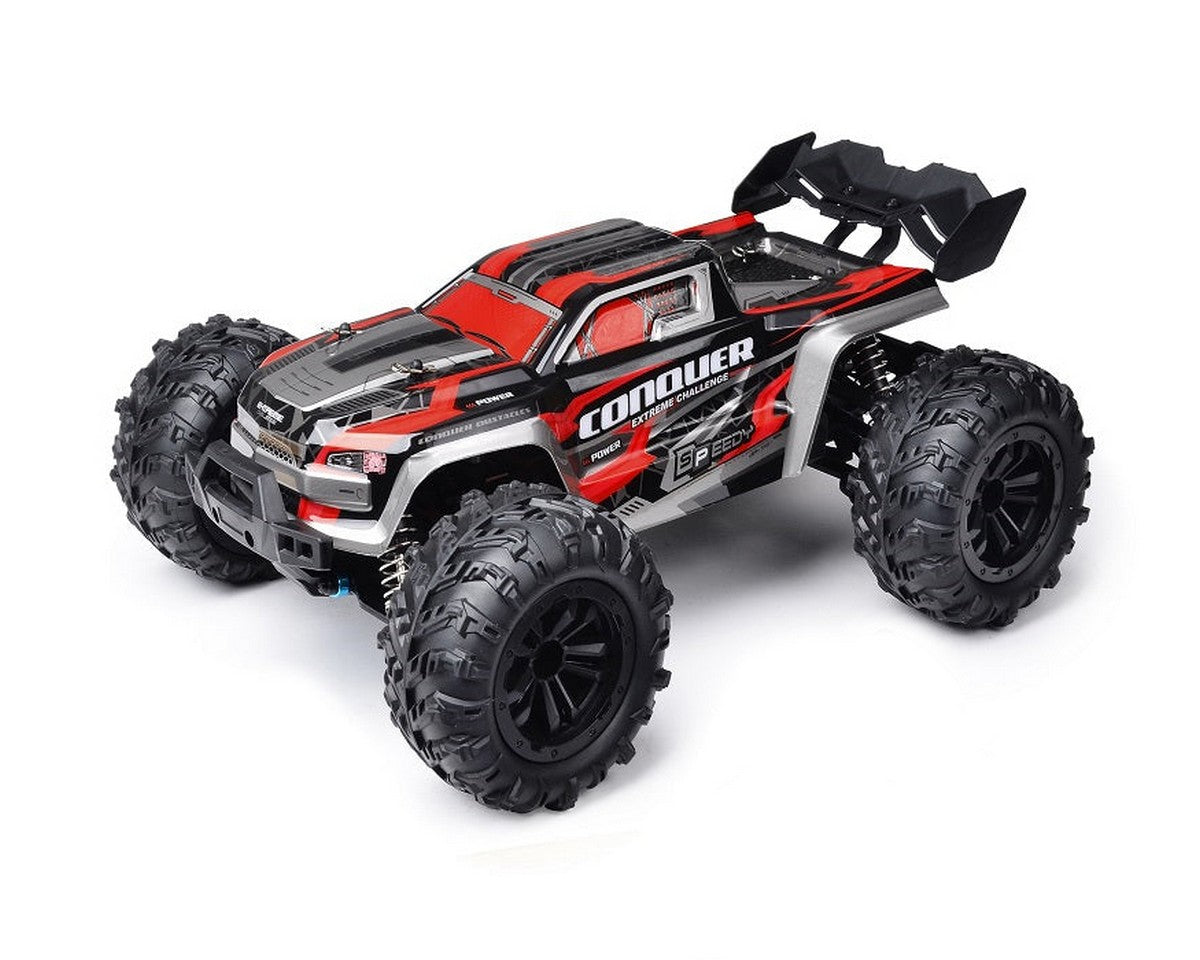

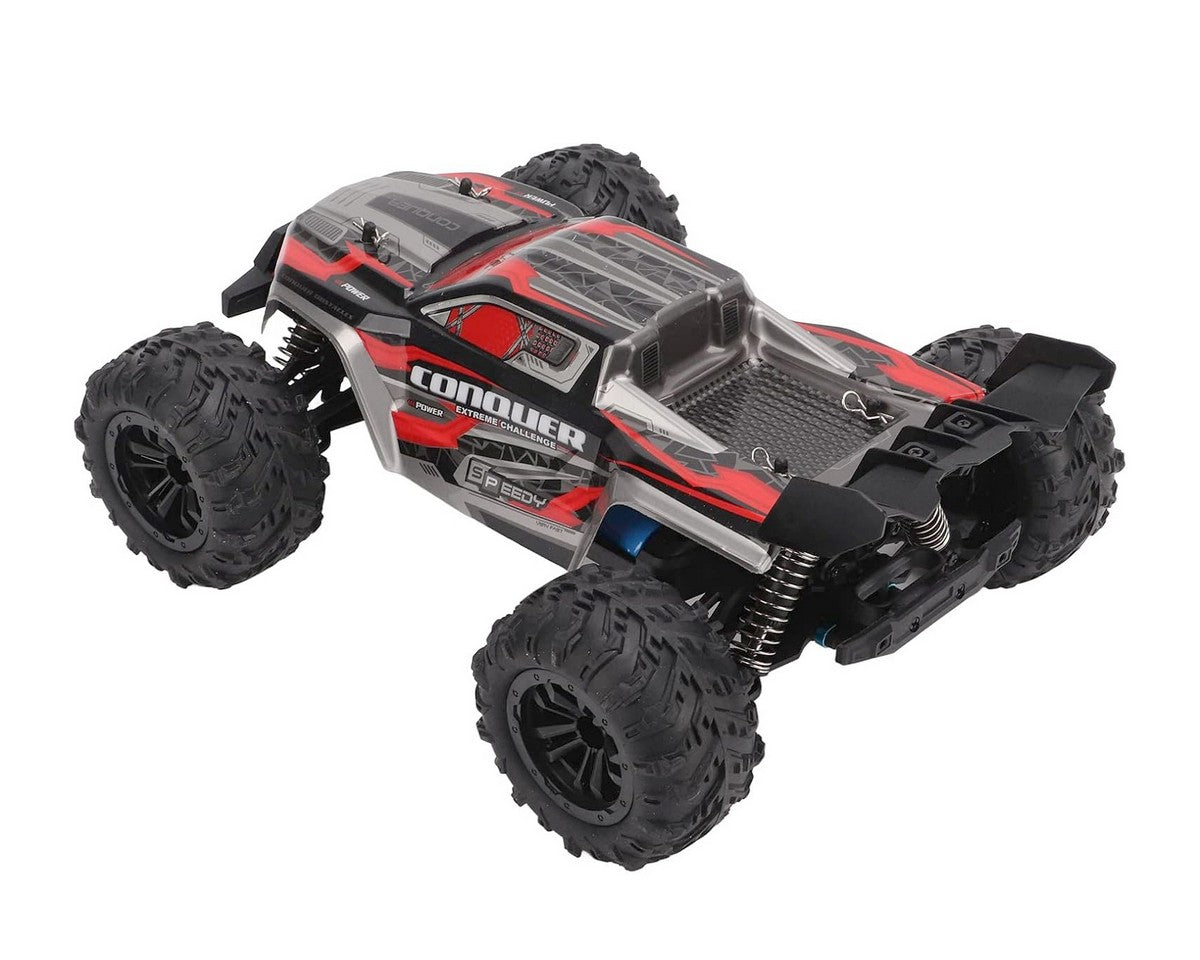

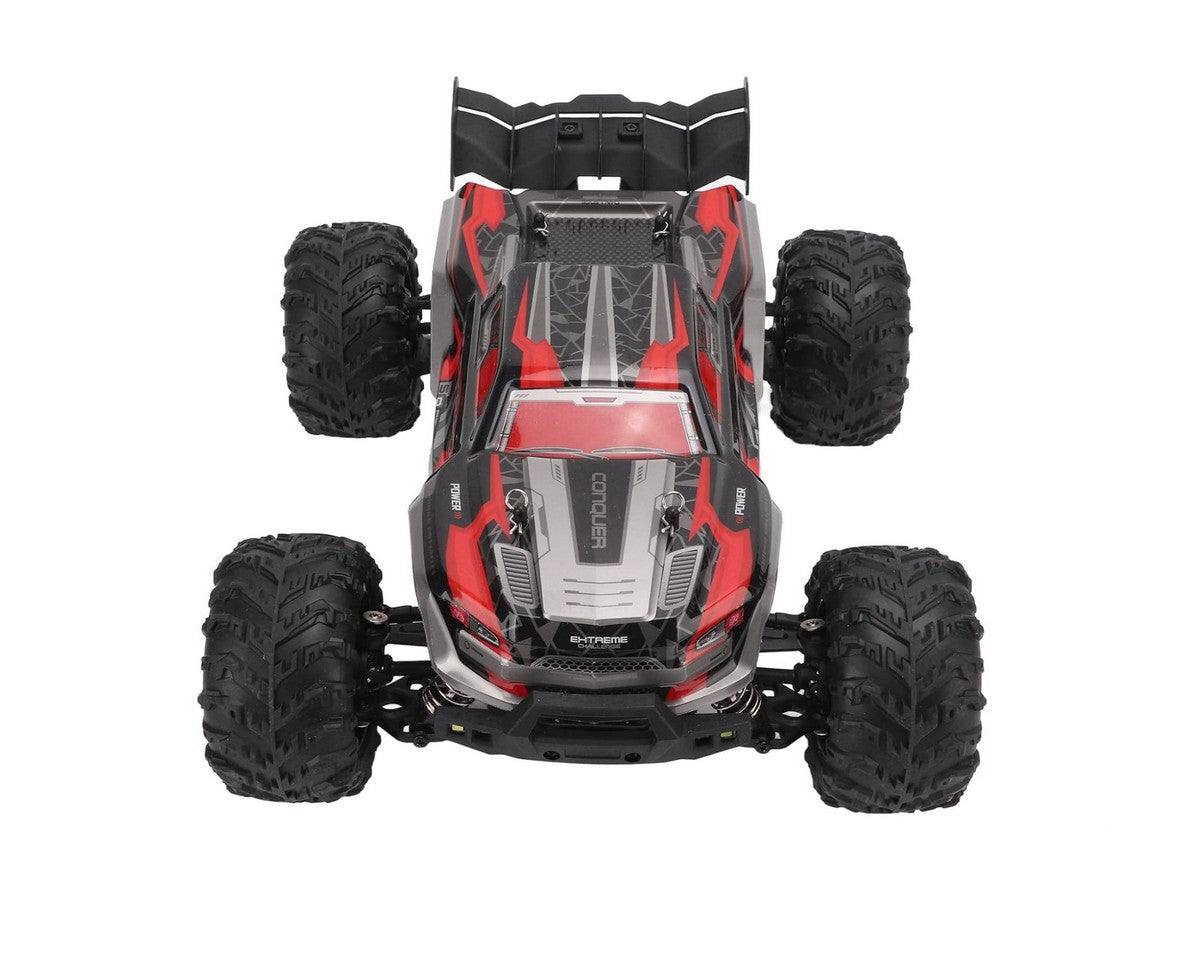

| Model Number | SCY-16102 (CONQUER Red Version) |
| Scale & Drive System | 1/16 Scale / 4WD (4-Wheel Drive) |
| Vehicle Dimensions | 30.0 cm × 23.0 cm × 11.5 cm |
| Wheelbase / Track / Tire Diameter | 185 mm / 188 mm / 85 mm |
| Top Speed | Up to 38 km/h |
| Motor Unit | RC390 Carbon-Brushed Motor with Aluminum Heatsink |
| ESC & Receiver Unit | Integrated 30A Brushed ESC / 2.4GHz Receiver (IPX4 Splash-Proof) |
| Steering Servo | 17g High-Response 5-Wire Digital Servo |
| Radio System & Range | 2.4GHz Full-Proportional Control System (≥ 80 meters) |
| Vehicle Battery | 7.4V (2S) 1300 mAh Li-ion Battery with Deans / T-Plug Connector |
| Charging & Run Time | USB Balanced Charger (120–150 min charge / 12–15 min run time) |
| Transmitter Battery Requirement | 3× 1.5V AA Batteries (Not Included) |
What's in the Box
| Item # | Included Component |
|---|---|
| 1 | SCY-16102 1/16 4WD Truck (Pre-assembled, Ready-to-Run) |
| 2 | 2.4GHz Pistol Grip Remote Controller |
| 3 | 7.4V 1300 mAh 2S Li-ion Rechargeable Battery Pack |
| 4 | USB Balanced Charging Cable |
| 5 | Wheelie Bar Assembly (Head-up wheel) |
| 6 | Rear Tail Wing |
| 7 | Multi-mode LED Headlight Assembly |
| 8 | Small Phillips Screwdriver & Tool Set |
| 9 | Set of Damping Adjustment Buckles / Shock Pre-load Clips |
| 10 | Spare Body Shell Metal Clips (R-Pins) |
| 11 | Product Instruction Manual (English) |
